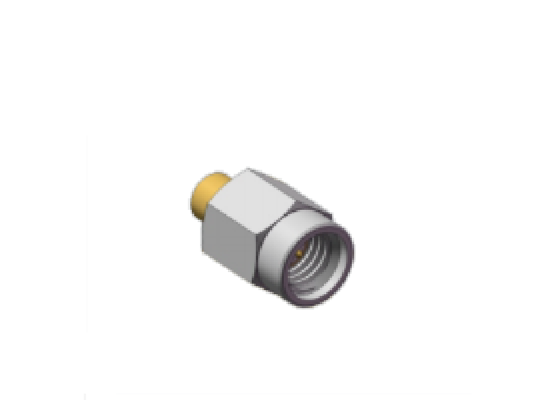

SSMA Male Mini SMA Plug RF Coaxial Cable Connector 18GHz 50Ω Mating for .086 Cable

SSMA Male Mini SMA Plug RF Coaxial Cable Connector 18GHz 50Ω Mating for .086 Cable
SSMA Male Mini SMA Plug RF Coaxial Cable Connector 18GHz 50Ω Mating for .086 Cable

Large Image :  SSMA Male Mini SMA Plug RF Coaxial Cable Connector 18GHz 50Ω Mating for .086 Cable Get Best Price

Product Details:
Place of Origin: Xi'an, China
Brand Name: ELT
Certification: RoHS
Model Number: SSMA-JB2G
Document: Catalog SSMA-mating .086 Ca...ic.pdf
Payment & Shipping Terms:
Minimum Order Quantity: In Stock, MOQ 50 for new production
Price: Depending on the quantity
Packaging Details: 1pcs/plastic bag;100pcs/carton
Delivery Time: 5-7 working days for stocked quantity
Payment Terms: T/T or LC
Supply Ability: As requirements
Contact Now
Detailed Product Description
Product Name: Mini SMA Male Cable Connector Model: SSMA-JB2A
Impedance: 50Ω Frequency Range: 0.3MHz-18GHz
DWV: 750V Insulation Resistance: ≥5000MΩ
Center Conductor: Copper Alloy, Gold Plated Mating Cable: .086 Cable
Outer Conductor: Stainless Steel, Passivation Insulators: PTFE
Highlight:

SSMA male RF connector 18GHz

,

Mini SMA plug coaxial cable

,

50Ω SSMA connector for .086 cable

50Ω Stainless Steel Mini SMA Male Plug RF Coaxial Cable Connectors 18GHz Mating for .086 Cable
High-Frequency Performance up to 18GHz
The Mini SMA Series RF coaxial connector is a miniaturized version of the SMA connector, designed to be 30% smaller while maintaining excellent performance characteristics. Featuring a threaded interface (10-36UNF-2) and 50Ω characteristic impedance, these connectors support frequencies up to 30GHz.
Key Features:
  • Compact design - 30% smaller than standard SMA connectors
  • Wide frequency band operation up to 30GHz
  • High reliability for demanding applications
  • Available in multiple configurations: straight, right angle, bulkhead, and flange mount options
  • Stainless steel screw sleeve/barrel for durability
Interface of Mini SMA RF Coaxial Connectors
SSMA RF Coaxial Connector interface dimensions diagram
Mini SMA Plug RF Coaxial Cable Connector Dimenstion:
Model No.: SSMA-JB2G
SSMA Male Mini SMA Plug RF Coaxial Cable Connector 18GHz 50Ω Mating for .086 Cable 1
Note: Please check our catalog for more similar models according to your application.
Applications
Xi'an Elite Electronics specializes in systematic interconnection solutions for demanding industries including:
  • Aerospace and aviation systems
  • Navigation and radar equipment
  • Communication systems
  • Measurement instruments
  • Electronics applications
Industrial applications of SSMA connectors
Packaging & Shipping
Each Mini SMA RF Coaxial Connector is carefully packaged to ensure protection during transportation:
SSMA Male Mini SMA Plug RF Coaxial Cable Connector 18GHz 50Ω Mating for .086 Cable 3
We use reliable courier services for prompt delivery, providing customers with tracking information upon shipment.
For additional similar product models information, please check our catalog or contact our sales team at:
