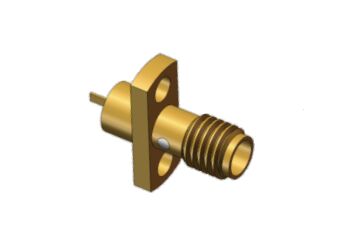

Gold Plating SSMA Female Mini Jack Flange Connectors with Microstrip Flat for 5G Micro-Base Station

Product Description:

The SSMA RF Connector also called mini SMA. It is a high-performance component designed specifically for mating with cables, 2 hole flange mount, 4 hole flange mount and PCB mount. This connector is engineered to provide excellent electrical performance, mechanical durability, and reliable connectivity in environments where precision and stability are paramount.

One of the key features of the SSMA RF Connector is its robust screw mechanism, which uses a 10-36UNS-2 thread. This fine thread design ensures a secure and stable connection, minimizing the risk of loosening due to vibration or mechanical stress. The precision threading also facilitates easy installation and removal, allowing for efficient maintenance and replacement without compromising the integrity of the connection.

Features:

• Product Name: SSMA RF Coaxial Connector
• Impedance: 50ohm
• Screw Type: 10-36UNS-2
• Dielectric Withstanding Voltage (DWV): 500V

• Feature	SSMA (Mini SMA)	SMA
  Size	Miniature (～70% of SMA)	Standard Size
  Frequency	Up to 40 GHz	Up to 18
  Use Case	5G Micro-Base Stations, Phased Array Antennas, Aerospace (where space is critical)	General 5G infrastructure, Test equipment
  Robustness	Good, but smaller threads require carefull torque	Excellent; very robust mechanical connection

Technical Parameters:

Applications:

SSMA connectors ensure reliable performance and environmental compliance, providing confidence for users in critical industries such as aviation communication, navigation equipment, radar signal transmission and satellite data links, satellite communication (Satcom) and radar systems.

The SSMA right angle flange mount connector, in particular, facilitates easy mounting on equipment panels while maintaining excellent electrical performance, ensuring robust and reliable connections in harsh environments.

Customization:

Elite Electronics is proud to offer product customization services for our SSMA RF Connector series. Our SSMA connectors are specially designed for mating cable, flange mount, PCB soldering, ensuring reliable performance in demanding environments.

Certified by ISO9001 and ISO14001, our SSMA connectors meet stringent quality and environmental standards tailored to fit your specific project needs in aviation, navigation, satcom, radar, communications, and microwave systems.

Customization MOQ: 200pcs

Packing & Shipping:

Product Packaging:

The SSMA RF Connector is carefully packaged to ensure protection during transit and handling. Each connector is individually sealed in an anti-static bag to prevent damage from static electricity. The connectors are then placed in a sturdy, cushioned box to avoid physical impact. Clear labeling is provided on the packaging for easy identification and inventory management.

Shipping:

The SSMA RF Connectors are shipped using reliable courier services to guarantee timely and safe delivery. Depending on the order size and destination, shipping options include standard ground, expedited air, or international freight. All shipments include tracking information and are handled with care to maintain product integrity until reaching the customer.

FAQ:

Q1: What is the brand and model number of the SSMA RF Connector?

A1: The SSMA RF Connectors is branded ELT and the model number is SSMA-KFD***

Q2: Where is the SSMA RF Connector manufactured?

A2: The SSMA RF Connectors is produced in Xi'an City, China.

Q3: What certifications does the SSMA RF Connectors have?

A3: The connectors is certified with ISO9001 and ISO14001 standards.

 Q4: What is the minimum order quantity and packaging details for this products?

A4: The minimum order quantity is 50 pieces, 200pieces for customization. The connectors are packaged 10 pieces per bag and 100 pieces per carton.

Q5: What are the payment terms and delivery time for the SSMA RF Connector?

A5: Payment can be made via T/T or L/C. Delivery time for stock items is typically 5-10 working days.

Q6: How is the price of the SSMA RF Connector determined?

A6: The price depends on the quantity ordered. Please contact the supplier for a detailed quote.
