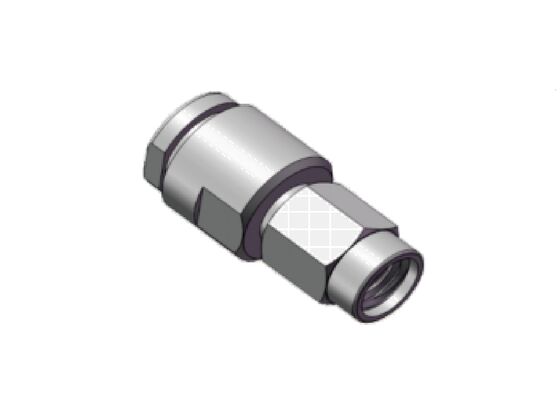

Stainless Steel Mini SMA cable connector for RF signal transmission in navigation systems

Product Description:

The SSMA RF Connector is a high-performance component designed to meet the rigorous demands of modern RF applications. ensuring reliable and consistent performance across a wide range of communication and signal transmission systems. With its robust construction and meticulous design, the SSMA connector is an excellent choice for engineers and technicians seeking durable and effective RF connectivity solutions.

The connector’s impedance is precisely maintained at 50 ohms, which is a standard requirement for RF connectors to minimize signal reflection and ensure optimal power transfer. This impedance matching capability makes the SSMA RF Connector ideal for use in high-frequency environments where signal loss and interference must be kept to a minimum.

This type of connector is widely used in RF modules, communication devices, and testing equipment, where reliable signal transmission and robust mechanical attachment are critical.

Features:

• Product Name: Mini SMA RF Connector
• Insulation Resistance: ≥5000MΩ
• Application: Aviation, Navigation, Satcom, Radar, Communications, Microwave Systems
• Gender: Male/Female
• Screw Type: 10-36UNS-2
• Insulator Material: PTFE
• Mini SMA RA connector we have flange mount, mating cable type, PCB mount

Technical Parameters:

Applications:

The Elite Electronic SSMA RF Connector series, including the SSMA right angle flange mount connector and the Mini SMA Straight connector, is an ideal choice for a wide range of application occasions and scenarios.

These connectors are widely used in telecommunications, aerospace, and military applications where high-frequency signal transmission is critical. With a frequency range of DC to 18GHz, the SSMA right angle flange mount connector offers excellent signal integrity, making it suitable for high-speed data communication systems, radar equipment, and satellite communications. The robust construction using copper alloy with gold plating for both the housing and center conductor ensures superior conductivity and corrosion resistance, even in harsh environments.

The Mini SMA Straight connector is particularly favored for compact and space-constrained installations, providing a secure connection with minimal signal loss. This makes it perfect for use in medical devices, test and measurement equipment, and wireless communication systems.

Customization:

We accept minimum order quantities of 200 pieces for customizaiton.

Our golden bull connectors are SMA, SSMA, SMP, SSMP(SMPM), N, TNC, TNCA, 2.92mm, waveguide adapters and cable assemblies

Packing and Shipping:

Our SSMA RF Connector is carefully packaged to ensure maximum protection during transit. Each connector is individually sealed in anti-static bags to prevent any electrostatic discharge damage. The connectors are then securely placed in cushioned compartments within sturdy boxes to avoid any physical impact or vibration.

For shipping, we use reliable carriers with tracking options to guarantee timely delivery. We take every precaution to maintain the integrity and performance of the SSMA RF Connector upon arrival.

FAQ:

Q1: What brand manufactures the SSMA RF Connector?

A1: The SSMA RF Connector is manufactured by the brand ELT.

Q2: Where is the SSMA RF Connector produced?

A2: It is produced in Xi'an City, China.

Q3: What certifications does the SSMA RF Connector have?

A3: The connector is certified with ISO9001 and ISO14001 standards.

Q4: What is the minimum order quantity for the SSMA RF Connector?

A4: The minimum order quantity is 50 pieces, customization is 200pcs

Q5: How is the SSMA RF Connector packaged for shipping?

A5: The connectors are packaged in 10 pieces per bag and 100 pieces per carton.

Q6: What is the typical delivery time for the SSMA RF Connector when in stock?

A6: The delivery time is usually 5-10 working days for stock orders.

Q7: What payment methods are accepted for purchasing the SSMA RF Connector?

A7: Payment terms accepted are T/T (Telegraphic Transfer) or L/C (Letter of Credit).

Q8: How is the price of the SSMA RF Connector determined?

A8: The price depends on the quantity ordered.
