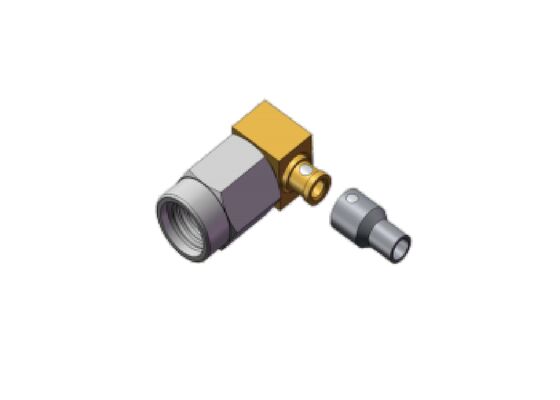

50Ω Impedance 3GHz Right Angle Mini SMA Male SSMA RF Connector with Multi Core Flexible Cable
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | SSMA Male Cable Connector | Model: | SSMA-JW2A-1 |
|---|---|---|---|
| Frequency Range: | 0.3MHz-3GHz | Impedance: | 50Ω |
| DWV: | 750V | Insulation Resistance: | ≥5000MΩ |
| Center Conductor: | Copper Alloy, Gold Plated | Outer Conductor: | Stailness Steel，Passivation |
| Mating Cable: | Flexible Cable SFF-50-1, SFF-50-1.5-1 | Insulators: | PTFE |
| Samples: | In Stock | Connector Style: | Right Angle |
50 Ω 3GHz RA Mini SMA Male SSMA RF Connector Mating 7 Multi Core Conductor Flexible Cable
High-Frequency Performance up to 18GHz
The SSMA RF connector is a miniaturized version of the SMA RF connector, designed to be 30% smaller while maintaining excellent performance characteristics. Featuring a threaded interface (10-36UNF-2) and 50Ω characteristic impedance, these connectors support frequencies up to 30GHz.
Key Feature:
- Compact design - 30% smaller than standard SMA RF connectors
- Wide frequency band operation up to 30GHz
- High reliability for demanding applications
- Available in multiple configurations: straight, right angle, bulkhead, and flange mount options
- Stainless steel screw sleeve/barrel for durability
Interface of SSMA RF Connectors
RA Mini SMA RF Connector Dimenstion:
Model No.: SSMA-JW2A-1 ( Mating Cable SFF-50-1, Cable OD 1.8mm)
Model No.: SSMA-JW2A-2 ( Mating Cable SFF-50-1, Cable OD 1.8mm )
Model No.: SSMA-JW3A-1 ( Mating Cable SFF-50-1.5-1, Cable OD 2.55mm )
Model No.: SSMA-JW3A ( Mating Cable SFF-50-1.5-1, Cable OD 2.55mm )
Applications
Xi'an Elite Electronics specializes in systematic interconnection solutions for demanding industries including:
- Aerospace and aviation systems
- Navigation and radar equipment
- Communication systems
- Measurement instruments
- Electronics applications
Packaging & Shipping
Each SSMA RF Connector is carefully packaged to ensure protection during transportation:
We use reliable courier services for prompt delivery, providing customers with tracking information upon shipment.
