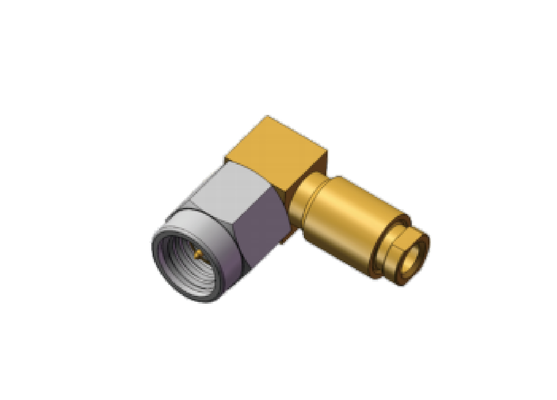

50Ω 18GHz Mini SMA Male Right Angle SSMA RF Coaxial Connector with Gold Plated Conductors
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | SSMA Male Cable Connector | Model: | SSMA-JW506 |
|---|---|---|---|
| Frequency Range: | 0.3MHz-18GHz | Impedance: | 50Ω |
| DWV: | 750V | Insulation Resistance: | ≥5000MΩ |
| Center Conductor: | Copper Alloy, Gold Plated | Outer Conductor: | Copper Alloy, Gold Plated |
| Connector Style: | Right Angle | Mating Cable: | CNX3506, MF108A |
| Insulators: | PTFE | Samples: | In Stock |
50Ω 18GHz Mini SMA SSMA RF Coaxial Connector Mating for Cable CXN3506,MF108A (Cable OD 2.3mm)
High-Frequency Performance up to 18GHz
The SSMA Series RF coaxial connector is a miniaturized version of the SMA connector, designed to be 30% smaller while maintaining excellent performance characteristics. Featuring a threaded interface (10-36UNF-2) and 50Ω characteristic impedance, these connectors support frequencies up to 30GHz.
Key Feature:
- Compact design - 30% smaller than standard SMA connectors
- Wide frequency band operation up to 30GHz
- High reliability for demanding applications
- Available in multiple configurations: straight, right angle, bulkhead, and flange mount options
- Stainless steel screw sleeve/barrel for durability
Interface of SSMA RF Coaxial Connectors
Mini SMA Plug Right Angle RF Coaxial Cable Connector Dimenstion:
Model No.: SSMA-JW506 ( mating cable CXN3506, MF108A, Cable OD 2.3mm)
Model No.:SSMA-JW506G-1 ( mating cable CXN3506, MF108A, Cable OD 2.3mm )
Applications
Xi'an Elite Electronics specializes in systematic interconnection solutions for demanding industries including:
- Aerospace and aviation systems
- Navigation and radar equipment
- Communication systems
- Measurement instruments
- Electronics applications
