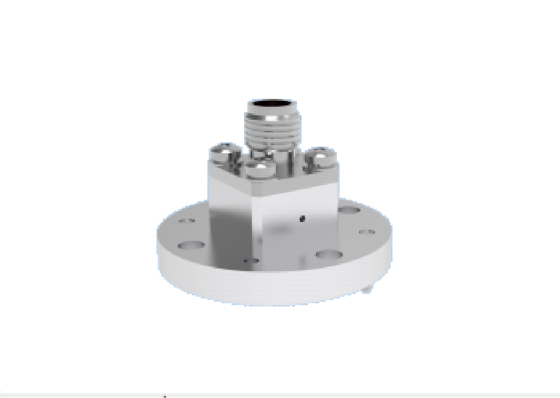

WR22 BJ400 End Launch Waveguide to 2.4mm Coaxial Adapter 4 Holes Round Flange Mount 23.9GHz-50.1GHz Ka Band Aerospace Waveguide Components

WR22 BJ400 End Launch Waveguide to 2.4mm Coaxial Adapter 4 Holes Round Flange Mount 23.9GHz-50.1GHz Ka Band Aerospace Waveguide Components
WR22 BJ400 End Launch Waveguide to 2.4mm Coaxial Adapter 4 Holes Round Flange Mount 23.9GHz-50.1GHz Ka Band Aerospace Waveguide Components

Large Image :  WR22 BJ400 End Launch Waveguide to 2.4mm Coaxial Adapter 4 Holes Round Flange Mount 23.9GHz-50.1GHz Ka Band Aerospace Waveguide Components Get Best Price

Product Details:
Place of Origin: Xi'an, China
Brand Name: ELT
Certification: ISO 9001, ISO14001
Model Number: BTZH-H2K-1
Payment & Shipping Terms:
Minimum Order Quantity: MOQ 10pcs
Price: Depending on the quantity
Packaging Details: 1pcs/plastic bag;100pcs/carton
Delivery Time: 8-12weeks after receiving payment
Payment Terms: T/T or LC
Supply Ability: As requirements
Contact Now
Detailed Product Description
Product Name: WR22 To Coaxial 2.4mm Adapter Model: BTZH-H2K-1
Frequency Range: 23.9GHz-50.1GHz Center Conductor: Copper Alloy, Gold Plating
Outer Conductor: Aluminium Alloy, Nature Color Conductive Oxidation Coaxial Port: 2.4mm
Structure: End Launch Mount Method: 4 Holes Round Flange Mount
Waveguide Port: BJ400 / WR22 VSWR: ≤1.25
Insertion Losss: ≤0.25dB Weight: ≤16g
Highlight:

WR22 waveguide to 2.4mm coaxial adapter

,

Ka band aerospace waveguide components

,

2.92mm RF connector with round flange

Product Description:


Waveguide to 2.4mm mmWave Adapter, End Launch

Elite Electronics manufactures high-performance aerospace-grade waveguide-to-coaxial adapters supplied in two core constructions: end-launch and right-angle configurations. Covering an extensive frequency range from 5.3 GHz to 145 GHz, our rectangular waveguide options span standard BJ / WR specifications: BJ70(WR137), BJ84(WR112), BJ100(WR90), BJ120(WR75), BJ140(WR62), BJ180(WR51), BJ220(WR42), BJ260(WR34), BJ320(WR28), BJ400(WR22), BJ500(WR19), BJ620(WR15), BJ740(WR12), BJ900(WR10), BJ1200(WR8).

Available coaxial interfaces include SMA, 2.92 mm, 2.4 mm, 1.85 mm, 1.0 mm and 0.8 mm series, with every waveguide port rated for full-bandwidth operation across its designated frequency band.

Boasting robust mechanical construction, compact footprint, superior consistent RF performance and low weight below 20 grams, our aerospace waveguide-coax transition adapters are extensively deployed in satellite and spacecraft aerospace applications.


Outline Dimension of waveguide WR22 to 2.4mm connectors, end launch:

Model No.:  BTZH-H2K-1

WR22 BJ400 End Launch Waveguide to 2.4mm Coaxial Adapter 4 Holes Round Flange Mount 23.9GHz-50.1GHz Ka Band Aerospace Waveguide Components 0


More waveguide to coaxial connectors, please don't hesitate to contact us for product catalog.  |  Custom Solutions Available

Applications:

Xi'an Elite Electronics is a Leading manufacturer of Systematic Interconnection Solution mainly serving the aerospace, aviation, navigation, radar, communications, measurement, electronics and other fields. Our high quality proudcts use the finest materials and strict processes to ensure the durability and reliability in harsh environment.

WR22 BJ400 End Launch Waveguide to 2.4mm Coaxial Adapter 4 Holes Round Flange Mount 23.9GHz-50.1GHz Ka Band Aerospace Waveguide Components 1

Packing & Shipping


 Packaging:

The waveguide WR 22 to coaxial 2.4mm connectors end launch is carefully packaged in carton to ensure its protection during transit.

WR22 BJ400 End Launch Waveguide to 2.4mm Coaxial Adapter 4 Holes Round Flange Mount 23.9GHz-50.1GHz Ka Band Aerospace Waveguide Components 2


Shipping:

We ship the end launch waveguide WR22 to coaxial 2.4mm connectors using a reliable courier service to ensure safe and prompt delivery to our customers. Customers will get a tracking NO. after the shipment.

Waveguide Port Comparison

BJ

(Chinese Standard)

 WR Frequency (GHz) Inner Width Inner Height Common Freq. Band
BJ70 WR137 5.38～8.17 34.85 15.8 C/X Band
BJ84 WR112 6.57～9.99 28.5 12.62 X Band
BJ100 WR90 8.20～12.50 22.86 10.16 X Band
BJ120 WR75 9.84～15.00 19.05 9.525 Ku low freq.
BJ140 WR62 11.90～18.00 15.8 7.9 Ku Band
BJ180 WR51 15.80～24.00 12.95 6.48 Ku high/K low freq.
BJ220 WR42 18.00～26.50 10.67 5.33 K Band
BJ260 WR34 21.70～33.00 8.636 4.318 Ka low freq.
BJ320 WR28 26.50～40.00 7.112 3.556 Ka
BJ400 WR22 33.00～50.00 5.69 2.845 Ka High freq. / U
BJ500 WR19 39.20～59.60 4.775 2.388 U/V Band
BJ620 WR15 50.00～75.00 3.759 1.88 V Band
BJ740 WR12 60.50～91.90 3.099 1.549 E Band
BJ900 WR10 75.00～110.0 2.54 1.27 W Band
BJ1200 WR08 92.20～140.0 2.032 1.016 F Band
