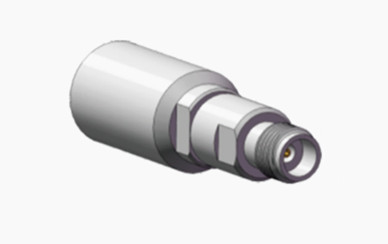

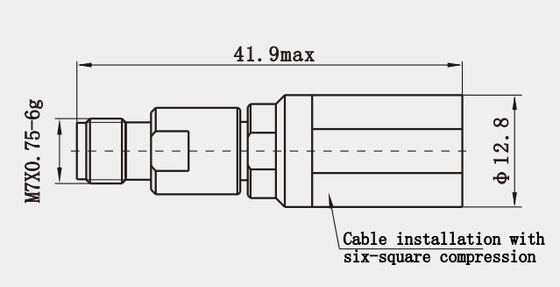

2.4mm Female Stainless Steel Material RF Connector for SF102E/SF102 Cable with Spring-loaded Armor
The 2.4 series connector is a high-performance millimeter-wave connector that supports frequencies up to 50GHz. It features an air interface and a threaded coupling mechanism, offering a compact size, lightweight construction, high usable frequency, and reliable electrical connections. This type of connector is widely used in high-frequency microwave testing and millimeter-wave applications.
Specification:
The specific data of the model are based on the data in the product specification sheet
| Impedance | 50Ω |
| Frequency Range | DC - 50GHz |
| Voltage Rating | 170 VRMS (Max. Sea Level) |
| Dielectric Withstanding Voltage | 500 VRMS (Max. Sea Level) |
Voltage Standing Wave Ratio | ≤ 1.05+0.005f |
| Contact Resistance | Center Conductor ≤ 3mΩ |
| Outer Conductor ≤ 2mΩ | |
| Insulation Resistance | ≥ 5000 MΩ |
| Inner Conductor | Male plug: Brass, Gold Plated |
| Female Jack: BeCu, Gold Plated | |
| Resilient Contact | BeCu, Nickel Plated |
| Body / Shell / Housing | Brass, Gold Plated |
| Insulator | PEI |
| Gasket | Silicone Rubber |
| Temperature | -55℃ ~ +125℃ |
| Durability | 500 Cycles |
| Torque | 0.79 ~ 1.13 N.m |
| Insertion loss | <.04 sqrt(f(GHz)) dB |
| Temperature range | -65 ℃~+165 ℃ |
| Contact pin | Gold Plating |
Features:
With its outstanding electrical and mechanical performance, the 2.4mm RF connector is becoming an essential component of next-generation communication and measurement equipment. The demand for high-frequency and high-speed connectors will continue to grow with the development of 5G and future 6G networks. The characteristics of the 2.4mm cable RF connector meet these needs well, opening broad prospects in fields such as radar, satellite communications, defense, and aerospace.
Application:
1. Test and Measurement Equipment
Calibration Testing: 2.4mm RF connectors are significantly employed in various test and measurement equipment. Especially in calibration kits and metrology applications, their precision air dielectric design allows for highly accurate measurements. They are commonly used in laboratory and production line calibration devices to ensure uniform performance standards across different testing equipment.
Precision Measurement Tools: 2.4mm connectors are also widely used in end launch evaluation tests and board-end testing equipment. These connectors offer high reliability and repeatability, ensuring consistency in every measurement and providing considerable convenience for engineers.
2. Commercial Communications Sector
5G Network Devices: With the proliferation of 5G networks, 2.4mm RF connectors are increasingly used in base station equipment and related communication infrastructure. These connectors support high-frequency, large bandwidth data transmission requirements, ensuring the efficient operation of network devices.
IoT Devices: In IoT devices, 2.4mm connectors have also begun to be utilized. For example, some high-precision sensors and data acquisition devices use these connectors to achieve fast and reliable data communication.
