| Product Name: | 2.4mm RF Coaxial Conector | Plating: | Passivated |
|---|---|---|---|
| Impedance: | 50Ω | Certificate: | CE ROHS |
| Type: | Male | Lifetime: | 500Cycles |
| Application: | Computer/LANs | Material: | Stainless Steel |
| High Light: | 2.4mm Stainless Steel Male RF Connector,Cable 2.4mm RF Connector,Male 2.4 Mm Connector |
||
2.4mm Male Stainless Steel RF Connector for CXN3657/MF151A Cable
2.4 mm High-Frequency Adapters and Connectors
Xi'an Elite Electronic offers 2.4 mm connectors and adapters made with high performance, quality, durability, and signal integrity
Image of Xi'an Elite Connector's 2.4 mm product line of adapters now includes a 2.4 mm high-frequency, and quick connect options. These adapters interface between 2.4 mm standard and other popular interfaces, such as 2.92 mm, SMA, and SMP. The 2.4 mm series operates up to 50 GHz and delivers a performance maximum VSWR of 1.25 and typically below 1.20. The high-frequency adapters are ideal for multiple applications.
The 2.4 mm connectors are operating to 50 GHz with VSWR performance of 1.20 to 1.25. Xi'an Elite Electronic continues to deliver end launch solutions with a jack/plug offering.

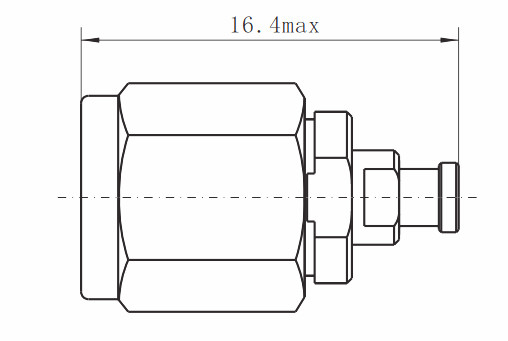

Outline Drawing of 2.4mm Male Stainless Steel RF Connector for CXN3657/MF151A Cable:(mm)
Specification of 2.4mm Male Stainless Steel RF Connector for CXN3657/MF151A Cable(mm):
|
Electrical Characteristics
|
||||
|
Impedance
|
50Ω
|
|||
|
Frequency Range
|
DC～50GHz
|
|||
|
Rated Voltage
|
170VRMS (Maximum sea-level)
|
|||
|
Dielectrics Voltage-resistance
|
500VRMS (Maximum sea-level)
|
|||
|
Insulation Resistance
|
≥5000MΩ
|
|||
|
Contact Resistance |
Outer conductor
|
≤2mΩ
|
||
|
Center conductor
|
≤3mΩ
|
|||
|
VSMR
|
≤1.05+0.005f
|
|||
Detailed Drawing of 2.4mm Male Stainless Steel RF Connector for CXN3657/MF151A Cable(mm):
Features of 2.4mm Male Stainless Steel RF Connector for CXN3657/MF151A Cable(mm):
*RF coaxial connector, supports up to 50 GHz
*The 2.4 mm connector series was designed to eliminate the fragility of the SMA and 2.92 mm connectors by increasing the outer wall thickness and strengthening the contact pin.
We offer a diverse line-up of products, from conversion adapters to board-mount adapters.
*Impedance: 50 ohm
*Frequency Range: Up to 50 GHz
Advantages of 2.4mm Male Stainless Steel RF Connector for CXN3657/MF151A Cable(mm):
*Small Size
*High Reliable
*Good Mechanical Performance
*Wide Frequency Range from DC to 50GHz
Application of 2.4mm Male Stainless Steel RF Connector for CXN3657/MF151A Cable(mm):
* Avionics, radars
* Navigation systems
* Missiles and guidance systems
* Telecommunication systems
* Instrumentation
* Automotive
* Computer/LANs
* Telecommunications
* Research centres
* Satellite communications
