| Product Name: | 2.4mm RF Coaxial Conector | Plating: | Passivated |
|---|---|---|---|
| Impedance: | 50Ω | Certificate: | CE ROHS |
| Type: | Male | Lifetime: | 500Cycles |
| Application: | Computer/LANs | Material: | Stainless Steel |
| High Light: | 2.4mm Male Cable Connector,Salt Spray Resistant Male Cable Connector,MF30A Stainless Steel 2.4 Mm Connector |
||
2.4mm Male Cable Connector for MF30A Stainless Steel Material Salt Spray Resistant
2.4 mm High-Frequency Adapters and Connectors
Xi'an Elite Electronic offers 2.4mm connectors and adapters made with high performance, quality, durability, and signal integrity
Image of Xi'an Elite Connector's 2.4mm product line of adapters now includes a 2.4mm high-frequency, and quick connect options. These adapters interface between 2.4mm standard and other popular interfaces, such as 2.92mm, SMA, and SMP. The 2.4mm series operates up to 50 GHz and delivers a performance maximum VSWR of 1.25 and typically below 1.20. The high-frequency adapters are ideal for multiple applications.
2.4 mm connectors are more robust than traditional SMA and 2.9 mm connectors and have a thick outer conductor, which increases the outer wall thickness and strengthens the female fingers. The thicker wall of the connector body is designed to engage prior to the center conductor creating a more ruggedized and repeatable mating interface. The interface is air dielectric with the contact supported by a short dielectric bead.

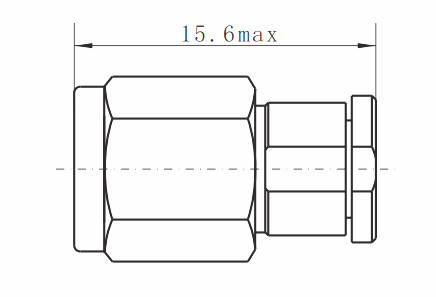

Outline Drawing of 2.4mm Male Cable Connector for MF30A Stainless Steel Material Salt Spray Resistant:(mm)
Specification of 2.4mm Male Cable Connector for MF30A Stainless Steel Material Salt Spray Resistant(mm):
|
Electrical Characteristics
|
||||
|
Impedance
|
50Ω
|
|||
|
Frequency Range
|
DC～50GHz
|
|||
|
Rated Voltage
|
170VRMS (Maximum sea-level)
|
|||
|
Dielectrics Voltage-resistance
|
500VRMS (Maximum sea-level)
|
|||
|
Insulation Resistance
|
≥5000MΩ
|
|||
|
Contact Resistance |
Outer conductor
|
≤2mΩ
|
||
|
Center conductor
|
≤3mΩ
|
|||
|
VSMR
|
≤1.05+0.005f
|
|||
Detailed Drawing of 2.4mm Male Cable Connector for MF30A Stainless Steel Material Salt Spray Resistant(mm):
Features of 2.4mm Male Cable Connector for MF30A Stainless Steel Material Salt Spray Resistant(mm):
*RF coaxial connector, supports up to 50GHz
*The 2.4mm connector series was designed to eliminate the fragility of the SMA and 2.92mm connectors by increasing the outer wall thickness and strengthening the contact pin.
We offer a diverse line-up of products from conversion adapters to board-mount adapters.
*Impedance: 50Ohm
*Frequency Range: Up to 50GHz
Advantages of 2.4mm Male Stainless Steel RF Connector for CXN3657/MF151A Cable(mm):
*Small Size
*High Reliable
*Good Mechanical Performance
*Wide Frequency Range from DC to 50GHz
Application of 2.4mm Male Stainless Steel RF Connector for CXN3657/MF151A Cable(mm):
* Avionics, radars
* Navigation systems
* Missiles and guidance systems
* Telecommunication systems
* Instrumentation
* Automotive
* Computer/LANs
* Telecommunications
* Research centres
* Satellite communications
