2.4mm Female 2-hole Flange RF Connector Jack with Cylindrical Contact and Φ0.4mm Pin Terminal
2.4 mm High-Frequency Adapters and Connectors
Xi'an Elite Electronic offers 2.4 mm connectors and adapters made with high performance, quality, durability, and signal integrity
Image of Xi'an Elite Connector's 2.4 mm product line of adapters now includes a 2.4 mm high-frequency, and quick connect options. These adapters interface between 2.4 mm standard and other popular interfaces, such as 2.92 mm, SMA, and SMP. The 2.4 mm series operates up to 50 GHz and delivers a performance maximum VSWR of 1.25 and typically below 1.20. The high-frequency adapters are ideal for multiple applications.
2.4 mm connectors are more robust than traditional SMA and 2.9 mm connectors and have a thick outer conductor, which increases the outer wall thickness and strengthens the female fingers. The thicker wall of the connector body is designed to engage prior to the center conductor creating a more ruggedized and repeatable mating interface. The interface is air dielectric with the contact supported by a short dielectric bead.

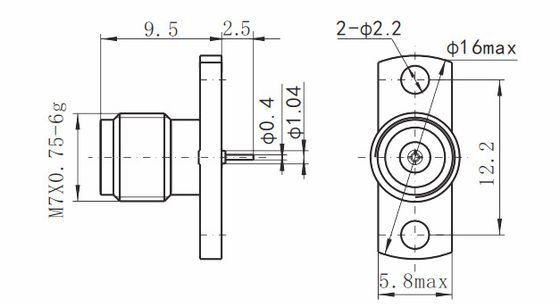

Outline Drawing of 2.4mm Female 2-hole Flange RF Connector Jack with Cylindrical Contact and Φ0.4mm Pin Terminal:(mm)
Specification of
2.4mm Female 2-hole Flange RF Connector Jack with Cylindrical Contact and Φ0.4mm Pin Terminal(mm):
|
Electrical Characteristics
|
||||
|
Impedance
|
50Ω
|
|||
|
Frequency Range
|
DC～50GHz
|
|||
|
Rated Voltage
|
170VRMS (Maximum sea-level)
|
|||
|
Dielectrics Voltage-resistance
|
500VRMS (Maximum sea-level)
|
|||
|
Insulation Resistance
|
≥5000MΩ
|
|||
|
Contact Resistance |
Outer conductor
|
≤2mΩ
|
||
|
Center conductor
|
≤3mΩ
|
|||
|
VSMR
|
≤1.05+0.005f
|
|||
Detailed Drawing of
2.4mm Female 2-hole Flange RF Connector Jack with Cylindrical Contact and Φ0.4mm Pin Terminal(mm):
Features
*RF coaxial connector, supports up to 50 GHz
*The 2.4 mm connector series was designed to eliminate the fragility of the SMA and 2.92 mm connectors by increasing the outer wall thickness and strengthening the contact pin.
We offer a diverse line-up of products, from conversion adapters to board-mount adapters.
*Impedance: 50 ohm
*Frequency Range: Up to 50 GHz
Advantages
*Small Size
*High Reliable
*Good Mechanical Performance
*Wide Frequency Range from DC to 50GHz
Application of
* Avionics, radars
* Navigation systems
* Missiles and guidance systems
* Telecommunication systems
* Instrumentation
* Automotive
* Computer/LANs
* Telecommunications
* Research centres
* Satellite communications
