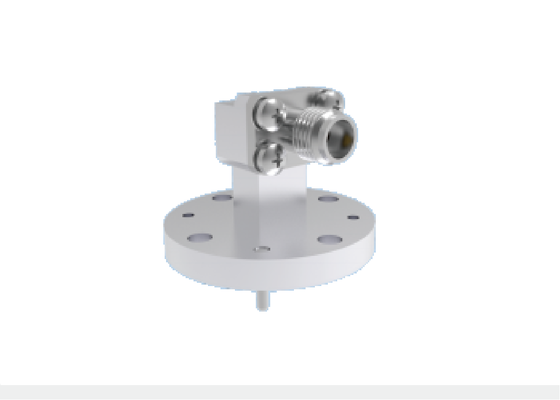

WR22 BJ400 Right Angle Waveguide to 2.4mm Coaxial Adapter 4 Holes Round Flange Mount 23.9GHz-50.1GHz Ka Band Aerospace Waveguide Components

Large Image : WR22 BJ400 Right Angle Waveguide to 2.4mm Coaxial Adapter 4 Holes Round Flange Mount 23.9GHz-50.1GHz Ka Band Aerospace Waveguide Components Get Best Price

Product Details:

Place of Origin:	Xi'an, China
Brand Name:	ELT
Certification:	ISO 9001, ISO14001
Model Number:	BTZH-P2K-1

Payment & Shipping Terms:

Minimum Order Quantity:	MOQ 10pcs
Price:	Depending on the quantity
Packaging Details:	1pcs/plastic bag;100pcs/carton
Delivery Time:	8-12weeks after receiving payment
Payment Terms:	T/T or LC
Supply Ability:	As requirements

Contact Now

Detailed Product Description

Product Name:	WR22 To Coaxial 2.4mm Adapter	Model:	BTZH-P2K-1
Frequency Range:	23.9GHz-50.1GHz	Center Conductor:	Copper Alloy, Gold Plating
Outer Conductor:	Aluminium Alloy, Nature Color Conductive Oxidation	Structure:	Right Angle
Coaxial Port:	2.4mm	Waveguide Port:	BJ400 / WR22
Mount Method:	4 Holes Round Flange Mount	VSWR:	≤1.25
Insertion Losss:	≤0.25dB	Weight:	≤16g
Highlight:	WR22 waveguide to 2.4mm coaxial adapter , Ka band aerospace waveguide component , 2.92mm RF connector with flange mount

Product Description:

Waveguide to 2.4mm mmWave Adapter

Elite Electronics manufactures high-performance aerospace-grade waveguide-to-coaxial adapters supplied in two core constructions: end-launch and right-angle configurations. Covering an extensive frequency range from 5.3 GHz to 145 GHz, our rectangular waveguide options span standard BJ / WR specifications: BJ70(WR137), BJ84(WR112), BJ100(WR90), BJ120(WR75), BJ140(WR62), BJ180(WR51), BJ220(WR42), BJ260(WR34), BJ320(WR28), BJ400(WR22), BJ500(WR19), BJ620(WR15), BJ740(WR12), BJ900(WR10), BJ1200(WR8).

Available coaxial interfaces include SMA, 2.92 mm, 2.4 mm, 1.85 mm, 1.0 mm and 0.8 mm series, with every waveguide port rated for full-bandwidth operation across its designated frequency band.

Boasting robust mechanical construction, compact footprint, superior consistent RF performance and low weight below 20 grams, our aerospace waveguide-coax transition adapters are extensively deployed in satellite and spacecraft aerospace applications.

Outline Dimension of waveguide WR22 to 2.4mm connectors:

Model No.: BTZH-P2K-1

WR22 BJ400 Right Angle Waveguide to 2.4mm Coaxial Adapter 4 Holes Round Flange Mount 23.9GHz-50.1GHz Ka Band Aerospace Waveguide Components 0

More waveguide connectors, please don't hesitate to contact us for product catalog. | Custom Solutions Available

Applications:

Xi'an Elite Electronics is a Leading manufacturer of Systematic Interconnection Solution mainly serving the aerospace, aviation, navigation, radar, communications, measurement, electronics fields. Our high quality proudcts use the finest materials and strict processes to ensure the durability and reliability in harsh environment.

WR22 BJ400 Right Angle Waveguide to 2.4mm Coaxial Adapter 4 Holes Round Flange Mount 23.9GHz-50.1GHz Ka Band Aerospace Waveguide Components 1

Packing & Shipping

Packaging:

The waveguide WR 22 to coaxial 2.4mm connectors is carefully packaged in carton to ensure its protection during transit.

WR22 BJ400 Right Angle Waveguide to 2.4mm Coaxial Adapter 4 Holes Round Flange Mount 23.9GHz-50.1GHz Ka Band Aerospace Waveguide Components 2

Shipping:

We ship the the waveguide WR22 to coaxial 2.4mm connectors using a reliable courier service to ensure safe and prompt delivery to our customers. Customers will get a tracking NO. after the shipment.

Waveguide Port Comparison

BJ (Chinese Standard)	WR	Frequency (GHz)	Inner Width	Inner Height	Common Freq. Band
BJ70	WR137	5.38～8.17	34.85	15.8	C/X Band
BJ84	WR112	6.57～9.99	28.5	12.62	X Band
BJ100	WR90	8.20～12.50	22.86	10.16	X Band
BJ120	WR75	9.84～15.00	19.05	9.525	Ku low freq.
BJ140	WR62	11.90～18.00	15.8	7.9	Ku Band
BJ180	WR51	15.80～24.00	12.95	6.48	Ku high/K low freq.
BJ220	WR42	18.00～26.50	10.67	5.33	K Band
BJ260	WR34	21.70～33.00	8.636	4.318	Ka low freq.
BJ320	WR28	26.50～40.00	7.112	3.556	Ka
BJ400	WR22	33.00～50.00	5.69	2.845	Ka High freq. / U
BJ500	WR19	39.20～59.60	4.775	2.388	U/V Band
BJ620	WR15	50.00～75.00	3.759	1.88	V Band
BJ740	WR12	60.50～91.90	3.099	1.549	E Band
BJ900	WR10	75.00～110.0	2.54	1.27	W Band
BJ1200	WR08	92.20～140.0	2.032	1.016	F Band
