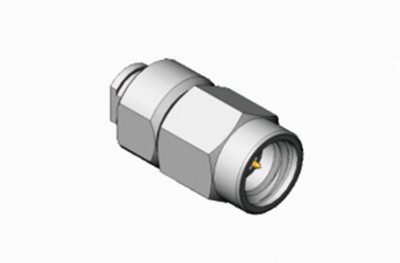

MSSM Male Stainless Steel RF Coaxial Connector For 2#Semi-rigid / Flexible Milimetere Wave

MSSM Male Stainless Steel RF Coaxial Connector For 2#Semi-rigid / Flexible Milimetere Wave
MSSM Male Stainless Steel RF Coaxial Connector For 2#Semi-rigid / Flexible Milimetere Wave MSSM Male Stainless Steel RF Coaxial Connector For 2#Semi-rigid / Flexible Milimetere Wave

Large Image :  MSSM Male Stainless Steel RF Coaxial Connector For 2#Semi-rigid / Flexible Milimetere Wave Get Best Price

Product Details:
Place of Origin: China
Brand Name: ELT (Elite)
Certification: ISO-9001-2015
Model Number: MSSM-J87G
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: Negotiable
Packaging Details: Standard Export Carton
Delivery Time: Within 5-7 workdays(for stocks)
Payment Terms: T/T, L/C
Supply Ability: 1,000,000pcs per week
Detailed Product Description
Plating: Gold Plated/ Nickel Plated Impedance: 50Ω
Certificate: ISO-9001-2015 Dielectric: PLF
Type: RF Adaptor Gender: Male
Durability: 500 Cycles
Highlight:

2# Semi-rigid RF Coaxial Connector

,

Flexible Milimetere Wave RF Coaxial Connector

,

MSSM RF Coaxial Connector

MSSM Male Stainless Steel RF Coaxial Connector for 2#Semi-rigid/flexible Milimetere Wave



The 1.0 series connector is a cutting-edge millimeter-wave connector designed for high-frequency applications, with the capability to handle frequencies up to 110GHz. It is especially suitable for millimeter-wave communication and radar systems. This connector features an air interface threaded connection, ensuring stable and reliable signal transmission. Its compact and lightweight design allows for easy integration into various systems, while its ultra-high frequency capabilities support efficient signal transfer. In summary, the 1.0 series connector is a versatile and reliable option for high-frequency applications.



Specifiacation:

Note:The specific data of the model are based on the data in the product specification sheet.

Electrical Characteristics
Impedance 50Ω
Frequency Range DC~110GHz
Dielectrics Voltage-resistance 250VRMS*
Insulation Resistance 5000MΩ
VSWR ≤1.1+0.005f
Quality Grade High Performance Grade
Material & Mechanical Characteristics
Center conductor Beryllium Bronze Gold plated
Outer conductor Beryllium Bronze Gold plated; Stainless steel Passivation
Insulation Dielectric PLF
Temperature Range -55 ~ +125



Feature

1. Interchangeability and Compatibility: MSSM connectors are compatible with the SSMA series of connectors, which means they can be used interchangeably, providing users with more flexibility and convenience. This compatibility allows users to choose the most appropriate connector type for their specific needs.

2. High Reliability: MSSM connectors are known for their high reliability and stability, and are able to maintain stable performance under a variety of environmental conditions. This is essential to ensure the continuity and reliability of communication systems.

3. Wide range of applications: Due to their high-frequency performance and miniaturized design, MSSM connectors are widely used in millimeter-wave communications, radar systems, satellite communications, and high-precision RF measurement equipment.

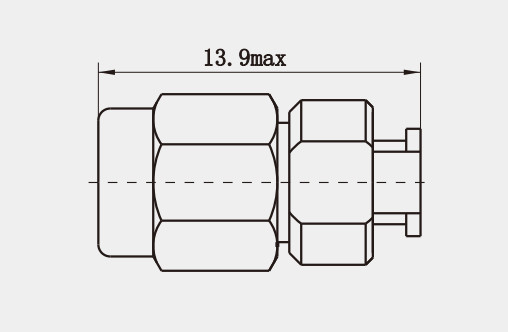

Outline Drawing(mm) and Picture of MSSM Male Stainless Steel RF Coaxial Connector for 2#Semi-rigid/flexible Milimetere Wave

MSSM Male Stainless Steel RF Coaxial Connector For 2#Semi-rigid / Flexible Milimetere Wave 0

Application:

1. High Precision RF Measurement Equipment: In the field of RF test and measurement, precise connection is the key to ensure the accuracy of the measurement results. the high performance characteristics of MSSM connectors make them suitable for a variety of high-precision RF measurement equipment.

2. Mobile base stations: mobile base stations require a large number of RF connectors to realize the distribution and reception of signals, the miniaturized design and high reliability of MSSM connectors make them very suitable for the construction and maintenance of mobile base stations.

3. Aerospace: In the aerospace field, the performance and reliability of connectors are extremely high, and MSSM connectors are able to meet these requirements, so they are widely used in aerospace equipment.



Product Cataloge:

RF Adapter
Waveguide to Coaxial Adapter
Glass-to-metal Hermetic Seals
J30J Series Connector
Microwave Rotary Joints
RF Cable Assemblies
SMA/SSMA RF Connector
SMP/SSMP RF Connector
MCX/MMCX RF Connector
TNC RF Connector
N Type RF Connector
BNC RF Connector Millimeter Wave Connectors(2.4mm, 2.92mm)



Other 1.0mm RF Adapters

1.   1.0mm Female to Female RF Adapter

(Model No.: 1.0-KK)

MSSM Male Stainless Steel RF Coaxial Connector For 2#Semi-rigid / Flexible Milimetere Wave 1MSSM Male Stainless Steel RF Coaxial Connector For 2#Semi-rigid / Flexible Milimetere Wave 2

2.   1.0mm Male to Male RF Adapter

(Model No.: 1.0-JJ)

MSSM Male Stainless Steel RF Coaxial Connector For 2#Semi-rigid / Flexible Milimetere Wave 3MSSM Male Stainless Steel RF Coaxial Connector For 2#Semi-rigid / Flexible Milimetere Wave 4



NOTE:
We have over 10,000 types of Adapter, if the connector you are using is not found, please contact us with your detai
ls.
