50Ω Stainless Steel Material MSSM Female RF Coaxial Connector With Micro-strip Nickel Plated

MSSM Female Stainless Steel Material RF Coaxial Connector with Micro-strip

The 1.0 series connector is an advanced millimeter wave connector engineered for high-frequency applications, capable of managing frequencies up to 110GHz. It's particularly well-suited for millimeter wave communication and radar systems. Featuring an air interface threaded connection, this connector ensures stable and reliable signal transmission. Its compact and lightweight design facilitates easy integration into various systems, while its ultra-high frequency capabilities enable efficient signal transfer. In summary, the 1.0 series connector is a versatile and dependable option for high-frequency applications.

Specifiacation:

Note:The specific data of the model are based on the data in the product specification sheet.

Feature

1. Inner conductor material: commonly gold-plated brass or beryllium copper, of which beryllium copper is commonly used in the inner conductor of female connectors due to its better elasticity.
2. Dielectric material: PTFE, PEI and air media, etc., air media has a low constant, making the connector has a higher cut-off frequency.
3. Outer conductor material: commonly stainless steel or copper plating, stainless steel outer conductor is more durable, but the manufacturing cost is also higher.

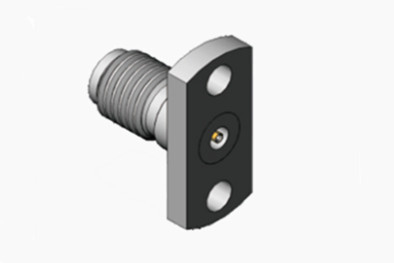

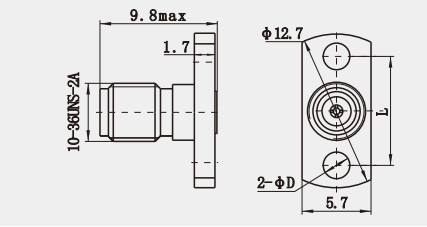

Outline Drawing(mm) and Picture of MSSM Female Stainless Steel Material RF Coaxial Connector with Micro-strip

Application:

1. Communication field: in mobile communication, wireless data, paging systems and other equipment, MSSM RF coaxial connectors are used to transmit microwave frequency signals to ensure stable transmission of high-frequency signals.

2. Scientific Research: In scientific research and experimentation, MSSM RF coaxial connectors are used to connect a variety of RF test equipment and instruments in order to measure and analyze high frequency signals. Their high precision and reliability are critical to the accuracy of scientific research.

3. Industrial field: In industrial production, MSSM RF coaxial connectors are used to connect a variety of RF control equipment and sensors to realize automated control and monitoring. Its stable electrical performance and mechanical durability make it suitable for harsh industrial environments.

Product Cataloge:

Other 1.0mm RF Adapters

1.   1.0mm Female to Female RF Adapter

(Model No.: 1.0-KK)

2.   1.0mm Male to Male RF Adapter

(Model No.: 1.0-JJ)

NOTE:
We have over 10,000 types of Adapter, if the connector you are using is not found, please contact us with your details.
