Product Details:
Payment & Shipping Terms:
|
| Plating: | Gold Plated/ Passivation | Impedance: | 50Ω |
|---|---|---|---|
| Certificate: | ISO-9001-2015 | Dielectric: | PEI/PLF |
| Type: | RF Connector | Gender: | Female |
| Durability: | 500 Cycles | ||
| Highlight: | Female Brass RF Connector,Micro-strip Coaxial Connector |
||
MSSM Series Female Brass RF Connector with Micro-strip Coaxial Connector
The MSSM series comprises high-performance millimeter-wave connectors designed for frequencies up to 40GHz. These connectors feature air-dielectric threaded connections and are compatible with the SSMA series, allowing for interchangeability. Characterized by their compact size, lightweight design, high operating frequency, and dependable connection, MSSM connectors are extensively utilized in high-frequency microwave measurements and millimeter-wave devices. Their features make them ideal for applications requiring limited space and reliable high-frequency performance.
Specifiacation:
Note:The specific data of the model are based on the data in the product specification sheet.
| Electrical Characteristics | |
| Impedance | 50Ω |
| Frequency Range | DC~40GHz |
| Dielectrics Voltage-resistance | 500VRMS* |
| Insulation Resistance | ≥5000MΩ |
| VSWR | ≤1.07+0.007f |
| Quality Grade | High Performance Grade |
| Material & Mechanical Characteristics | |
| Center conductor | Beryllium Bronze Gold plated |
| Outer conductor | Beryllium Bronze Gold plated; Stainless steel Passivation |
| Insulation Dielectric | PLF/PEI |
| Temperature Range | -55 ~ +125℃ |
Feature:
1. Isolation: prevent high-frequency signal interference in the transmission process, the higher the isolation, the higher the stability and reliability of signal transmission.
2. Unplugging life: under normal conditions of use, how many times the plugging and unplugging operations can be carried out without affecting the performance and reliability of the connector.
3. Material composition
Inner conductor material: commonly gold-plated brass or beryllium copper, of which beryllium copper is commonly used in the inner conductor of female connectors due to its better elasticity.
Dielectric material: PTFE, PEI and air media, etc., the air medium has a low constant, making the connector has a higher cut-off frequency.
Outer conductor material: commonly stainless steel or copper plating, stainless steel outer conductor is more durable, but the manufacturing cost is also higher.

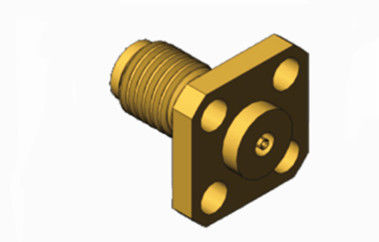

Outline Drawing(mm) and Picture of MSSM Series Female Brass RF Connector with Micro-strip Coaxial Connector
Application:
1. Medical: In medical equipment such as MRI (Magnetic Resonance Imaging), MSSM RF coaxial connectors are used to transmit RF energy to help generate high quality images. Their precise electrical properties are critical to the performance of medical equipment.
2. Scientific Research: In scientific research and experimentation, MSSM RF coaxial connectors are used to connect a variety of RF test equipment and instruments in order to measure and analyze high frequency signals. Their high precision and reliability are critical to the accuracy of scientific research.
3. Industrial field: In industrial production, MSSM RF coaxial connectors are used to connect a variety of RF control equipment and sensors to realize automated control and monitoring. Its stable electrical performance and mechanical durability make it suitable for harsh industrial environments.
