Reverse Polarity MSSM Female Stainless Steel RF Coaxial Connector

Reverse Polarity MSSM Female Stainless Steel RF Coaxial Connector
Reverse Polarity MSSM Female Stainless Steel RF Coaxial Connector Reverse Polarity MSSM Female Stainless Steel RF Coaxial Connector

Large Image :  Reverse Polarity MSSM Female Stainless Steel RF Coaxial Connector Get Best Price

Product Details:
Place of Origin: China
Brand Name: ELT (Elite)
Certification: ISO-9001-2015
Model Number: RPMSSM-K507G
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: Negotiable
Packaging Details: Standard Export Carton
Delivery Time: Within 5-7 workdays(for stocks)
Payment Terms: T/T, L/C
Supply Ability: 1,000,000pcs per week
Detailed Product Description
Plating: Gold Plated/ Passivation Impedance: 50Ω
Certificate: ISO-9001-2015 Dielectric: PEI/PLF
Type: RF Connector Gender: Female
Durability: 500 Cycles
Highlight:

Stainless Steel RF Coaxial Connector

,

Reverse Polarity RF Coaxial Connector

,

MSSM Female RF Coaxial Connector

Reverse Polarity MSSM Female Stainless Steel RF Coaxial Connector



The MSSM series stands out as high-performance millimeter-wave connectors, boasting a frequency range up to 40GHz. These connectors feature air interface threaded connections and are interchangeable with SSMA series connectors, offering versatility. Notably, the MSSM series is characterized by its compact size, lightweight design, high operating frequency, and dependable connection. Due to these features, they are extensively utilized in high-frequency microwave measurements and millimeter-wave devices.



Specifiacation:

Note:The specific data of the model are based on the data in the product specification sheet.

Electrical Characteristics
Impedance 50Ω
Frequency Range DC~40GHz
Dielectrics Voltage-resistance 500VRMS*
Insulation Resistance 5000MΩ
VSWR ≤1.07+0.007f
Quality Grade High Performance Grade
Material & Mechanical Characteristics
Center conductor Beryllium Bronze Gold plated
Outer conductor Beryllium Bronze Gold plated; Stainless steel Passivation
Insulation Dielectric PLF/PEI
Temperature Range -55 ~ +125



Feature:

1. Miniaturized design: MSSM connectors are miniaturized RF connectors for applications where space saving is required, such as mobile communication devices and small antennas. Their compact size helps to achieve high-performance connections in limited space.

2. Thread Locking Mechanism: These connectors feature a thread locking design that provides reliable mechanical strength and electrical performance. The thread locking mechanism ensures a stable and reliable connection, even under vibration or harsh environments.

3. Interchangeability and Compatibility: MSSM connectors are compatible with SSMA series connectors, which means they can be used interchangeably, providing users with more flexibility and convenience. This compatibility allows users to choose the most appropriate connector type for their specific needs.

4. High Reliability: MSSM connectors are known for their high reliability and stability, and are able to maintain stable performance under a variety of environmental conditions. This is essential to ensure the continuity and reliability of communication systems.

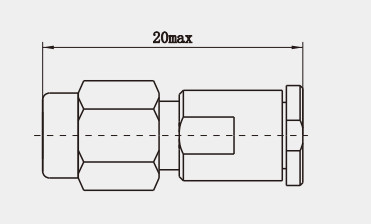

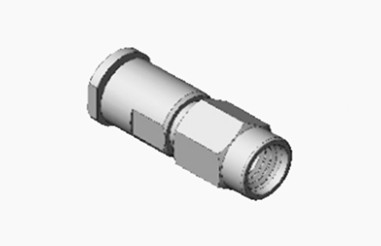

Outline Drawing(mm) and Picture of  Reverse Polarity MSSM Female Stainless Steel RF Coaxial Connector

Reverse Polarity MSSM Female Stainless Steel RF Coaxial Connector 0

Application:



1. Satellite Communication: Satellite communication requires high performance RF connectors to ensure stable signal transmission, the reliability and stability of MSSM connectors make them ideal for satellite communication equipment.

2. High-precision RF measurement equipment: in the field of RF test and measurement, precise connection is the key to ensure the accuracy of the measurement results. the high-performance characteristics of MSSM connectors make them suitable for a variety of high-precision RF measurement equipment.

3. Mobile communication base stations: mobile communication base stations require a large number of RF connectors for signal distribution and reception, the miniaturized design and high reliability of MSSM connectors make them ideal for the construction and maintenance of mobile communication base stations.



Product Cataloge:

RF Adapter
Waveguide to Coaxial Adapter
Glass-to-metal Hermetic Seals
J30J Series Connector
Microwave Rotary Joints
RF Cable Assemblies
SMA/SSMA RF Connector
SMP/SSMP RF Connector
MCX/MMCX RF Connector
TNC RF Connector
N Type RF Connector
BNC RF Connector Millimeter Wave Connectors(2.4mm, 2.92mm)



Other 1.0mm RF Adapters

1.   1.0mm Female to Female RF Adapter

(Model No.: 1.0-KK)

Reverse Polarity MSSM Female Stainless Steel RF Coaxial Connector 1Reverse Polarity MSSM Female Stainless Steel RF Coaxial Connector 2

2.   1.0mm Male to Male RF Adapter

(Model No.: 1.0-JJ)

Reverse Polarity MSSM Female Stainless Steel RF Coaxial Connector 3Reverse Polarity MSSM Female Stainless Steel RF Coaxial Connector 4



NOTE:
We have over 10,000 types of Adapter, if the connector you are using is not found, please contact us with your detai
ls.
