High Performance MSSM Male Stainless Steel RF Coaxial Connector for MF147A Cable
The MSSM product line includes high-performance millimeter-wave connectors designed to function at frequencies reaching up to 40GHz. These connectors employ air interface threaded connections and are compatible with SSMA series connectors, providing flexibility. Key features of the MSSM series include their small form factor, lightweight construction, high operating frequency, and reliable connection performance. As a result, they are widely used in high-frequency microwave measurements and millimeter-wave devices.
Specifiacation:
Note:The specific data of the model are based on the data in the product specification sheet.
Electrical Characteristics | |
Impedance | 50Ω |
Frequency Range | DC~40GHz |
Dielectrics Voltage-resistance | 500VRMS* |
Insulation Resistance | ≥5000MΩ |
VSWR | ≤1.07+0.007f |
Quality Grade | High Performance Grade |
Material & Mechanical Characteristics | |
Center conductor | Beryllium Bronze Gold plated |
Outer conductor | Beryllium Bronze Gold plated; Stainless steel Passivation |
Insulation Dielectric | PLF/PEI |
Temperature Range | -55 ~ +125℃ |
Feature:
1. High Frequency Performance: The MSSM series connectors are designed to support a frequency range of up to 40 GHz. This high frequency characteristic makes them ideal for millimeter wave communications, radar systems, and high-precision RF applications.
2. Miniaturized Design: MSSM connectors are miniaturized RF connectors for applications where space saving is required, such as mobile communication devices and small antennas. Their compact size helps to realize high-performance connections in limited space.
3. Thread Locking Mechanism: These connectors feature a thread locking design that provides reliable mechanical strength and electrical performance. The thread locking mechanism ensures a stable and reliable connection, even under vibration or harsh environments.
4. Interchangeability and Compatibility: MSSM connectors are compatible with SSMA series connectors, which means they can be used interchangeably, providing users with more flexibility and convenience. This compatibility allows users to choose the most appropriate connector type for their specific needs.
5. High Reliability: MSSM connectors are known for their high reliability and stability, and are able to maintain stable performance under a variety of environmental conditions. This is essential to ensure the continuity and reliability of communication systems.

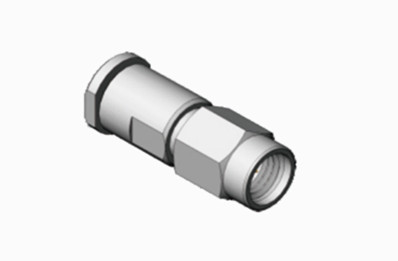

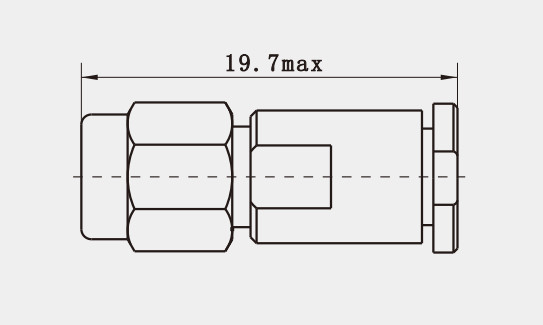

Outline Drawing(mm) and Picture of High Performance MSSM Male Stainless Steel RF Coaxial Connector for MF147A Cable
Application:
1. Radar Systems: In radar technology, high-frequency signals are critical for improving resolution and range, and the high-frequency performance of MSSM connectors makes them an indispensable part of radar systems, especially in military and civilian radar applications.
2. Satellite Communications: Satellite communications require high performance RF connectors to ensure stable signal transmission. the reliability and stability of MSSM connectors make them ideal for satellite communications equipment.
3. High-precision RF measurement equipment: in the field of RF test and measurement, precise connection is the key to ensure the accuracy of measurement results. the high-performance characteristics of MSSM connectors make them suitable for a variety of high-precision RF measurement equipment.
4. Mobile communication base stations: mobile communication base stations require a large number of RF connectors for signal distribution and reception, the miniaturized design and high reliability of MSSM connectors make them ideal for the construction and maintenance of mobile communication base stations.
