MSSM Female RF Coaxial Connector For 1#Semi-rigid / Flexible Milimetere Wave

MSSM Female RF Coaxial Connector for 1#Semi-rigid/flexible Milimetere Wave

The MSSM product line features high-performance millimeter-wave connectors capable of managing frequencies up to 40GHz. These connectors utilize air interface threaded connections and are compatible with the SSMA series, offering versatility. The MSSM series is distinguished by its compact size, lightweight design, high operating frequency, and reliable connectivity. Consequently, these connectors are extensively utilized in high-frequency microwave measurements and millimeter-wave applications.

Specifiacation:

Note:The specific data of the model are based on the data in the product specification sheet.

Feature:

1. HIGH RELIABILITY: MSSM connectors are known for their high reliability and stability in a variety of environmental conditions. This is essential to ensure the continuity and reliability of communication systems.

2. Miniaturized Design: MSSM connectors are miniaturized RF connectors for applications where space saving is required, such as mobile communication devices and small antennas. Their compact size helps to achieve high-performance connections in limited space.

3. High Frequency Performance: MSSM series connectors are designed to support a frequency range of up to 40 GHz. This high frequency characteristic makes them ideal for millimeter wave communications, radar systems, and high-precision RF applications.

4. Interchangeability and Compatibility: The MSSM connectors are compatible with the SSMA series connectors, which means they can be used interchangeably, providing users with more flexibility and convenience. This compatibility allows users to choose the most appropriate connector type for their specific needs.

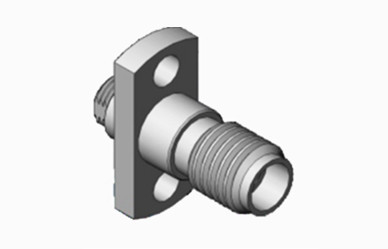

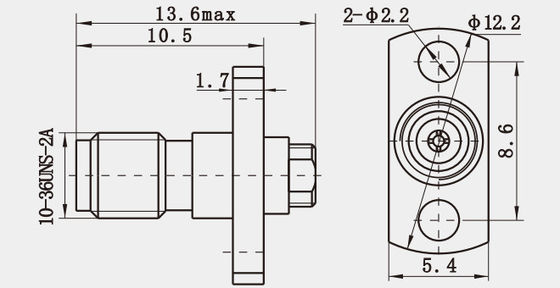

Outline Drawing(mm) and Picture of  MSSM Female RF Coaxial Connector for 1#Semi-rigid/flexible Milimetere Wave

Application:

1. Satellite Communication: Satellite communication requires high performance RF connectors to ensure stable signal transmission, the reliability and stability of MSSM connectors make them ideal for satellite communication equipment.

2. High-precision RF measurement equipment: in the field of RF test and measurement, precise connection is the key to ensure the accuracy of the measurement results. the high-performance characteristics of MSSM connectors make them suitable for a variety of high-precision RF measurement equipment.

3. Mobile communication base stations: mobile communication base stations require a large number of RF connectors for signal distribution and reception, the miniaturized design and high reliability of MSSM connectors make them ideal for the construction and maintenance of mobile communication base stations.

Product Cataloge:

Other 1.0mm RF Adapters

1.   1.0mm Female to Female RF Adapter

(Model No.: 1.0-KK)

2.   1.0mm Male to Male RF Adapter

(Model No.: 1.0-JJ)

NOTE:
We have over 10,000 types of Adapter, if the connector you are using is not found, please contact us with your details.
