Milimeter Wave MSSM Series Female Stainless Steel RF Connector with Microstrip

The MSSM product line consists of high-performance millimeter-wave connectors capable of operating at frequencies up to 40GHz. These connectors utilize air-dielectric threaded connections and are interchangeable with the SSMA series. Noted for their compact size, lightweight design, high operational frequency, and dependable connectivity, MSSM connectors are extensively employed in high-frequency microwave measurements and millimeter-wave devices. Their features make them particularly suitable for applications requiring limited space and high-frequency performance.

Specifiacation:

Note:The specific data of the model are based on the data in the product specification sheet.

Feature:

1.Basic structure

Inner conductor: center pin plug, used to connect the cable and the interface of the device to achieve information interconnection.
Outer conductor: Cylindrical socket that serves the function of protecting and fixing the connector from the external environment.
Insulator: Located between the inner and outer conductors to prevent signal interference and short circuit.

2. Operating Frequency: Depends on the physical structure of the connector, including the size of the inner and outer conductors, the nature of the dielectric material, and so on.

3. VSWR (VSWR): one of the important indicators of the connector's merits, the lower the VSWR, the better the performance.

4. Insertion loss: signal loss caused by the signal transmission process, the smaller the connector signal transmission efficiency is higher.

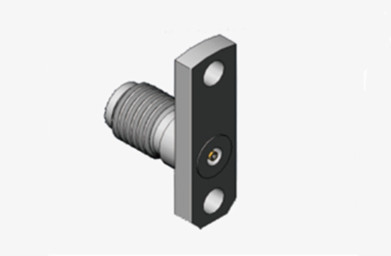

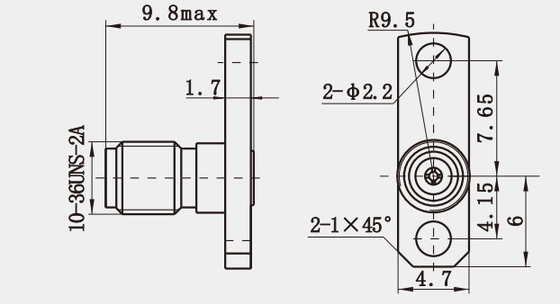

Outline Drawing(mm) and Picture of  Milimeter Wave MSSM Series Female Stainless Steel RF Connector with Microstrip

Application:

1. Communication field: In mobile communication, wireless data, paging system and other equipment, MSSM RF coaxial connectors are used to transmit microwave frequency signals to ensure stable transmission of high-frequency signals.

2. Broadcasting field: In the broadcasting system, MSSM RF coaxial connectors are used to connect the transmitter and antenna to realize the transmission of TV signals. Its good electrical performance and mechanical durability ensure the stable transmission of broadcasting signals.

Product Cataloge:

Other 1.0mm RF Adapters

1.   1.0mm Female to Female RF Adapter

(Model No.: 1.0-KK)

2.   1.0mm Male to Male RF Adapter

(Model No.: 1.0-JJ)

NOTE:
We have over 10,000 types of Adapter, if the connector you are using is not found, please contact us with your details.
