MSSM RF Cable Connector Male Stainless Steel for 2#Semi-rigid/flexible Cable

MSSM RF Cable Connector Male Stainless Steel for 2#Semi-rigid/flexible Cable

The MSSM product line includes high-performance millimeter-wave connectors that can handle frequencies up to 40GHz. They use air interface threaded connections and are interchangeable with the SSMA series connectors. Characterized by their small size, lightweight, high
operating frequency, and reliable connection, the MSSM series connectors are widely used in high-frequency microwave measurements and millimeter-wave devices.

Specifiacation:

Note:The specific data of the model are based on the data in the product specification sheet.

Feature:

* Precision Machining and Manual Assembly: Due to their small size and precision requirements, the machining of MSSM connector parts is primarily done on lathes, with assembly work mostly carried out by hand.

* Integrated Internal Functions: In addition to basic connectivity, MSSM connectors can integrate internal functions such as filtering, phase adjustment, and mixing to meet the needs of multifunctional devices.

* Precision Machining and Manual Assembly: Due to their small size and precision requirements, the machining of MSSM connector parts is primarily done on lathes, with assembly work mostly carried out by hand.

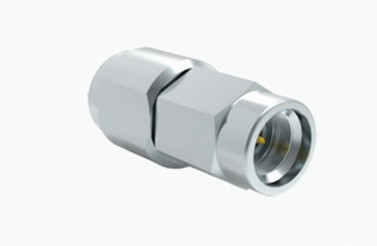

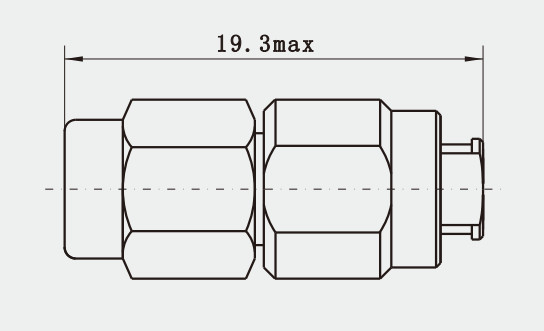

Outline Drawing(mm) and Picture of  MSSM RF Cable Connector Male Stainless Steel for 2#Semi-rigid/flexible Cable

Application:

* Testing and Measuring Equipment: RF signal generators, network analyzers, and other testing and measuring devices use MSSM connectors to transmit stable reference signals and measurement outcomes, which is crucial for improving test accuracy.
* Medical Instruments: Certain medical imaging devices like MRI and CT scanners also use MSSM RF coaxial connectors to ensure high-quality image signal transmission.

Product Cataloge:

Other 1.0mm RF Adapters

1.   1.0mm Female to Female RF Adapter

(Model No.: 1.0-KK)

2.   1.0mm Male to Male RF Adapter

(Model No.: 1.0-JJ)

NOTE:
We have over 10,000 types of Adapter, if the connector you are using is not found, please contact us with your details.
