Product Details:
Payment & Shipping Terms:
|
| Item: | Millimeter Wave Cable Assembly | Gender: | Male |
|---|---|---|---|
| Material: | Stainless Steel | Keywords: | 1.85 Mm MMW Connectors |
| Plating: | Passivated | Application: | RF |
| Body Style: | Straight | ||
| High Light: | Male RF Stainless Steel Plugs,Rigid RF Cable Assembly Plugs,1.85mm MMW RF Plugs |
||
1.85mm MMW Series Male RF Stainless Steel Plugs for Rigid RF Cable Assembly, L=200/400 mm
Specification:
|
Electronic and Material Characterials |
||
| Impedance | 50Ohm | |
| Frequency Range | DC~67GHz | |
| Rated Voltage | 170 VRMS (Maximum sea-level) | |
| Dielectrics Voltage-resistance | 500 VRMS (Maximum sea-level) | |
| VSWR | ≤1.3 | |
| Insulation Resistance | ≥5000MΩ | |
| Center conductor | Male |
Beryllium bronze gold plated |
| Female | Beryllium bronze gold plated | |
| Shell and other metal parts |
Brass /stainless Stain gold plated /passivated |
|
| Insulator | PEI/PLF | |
| Seal ring | Silicon rubber | |
| Mating torque | 0.79 -1.13 N.m | |

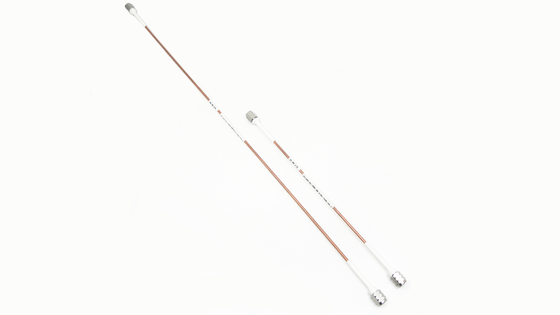

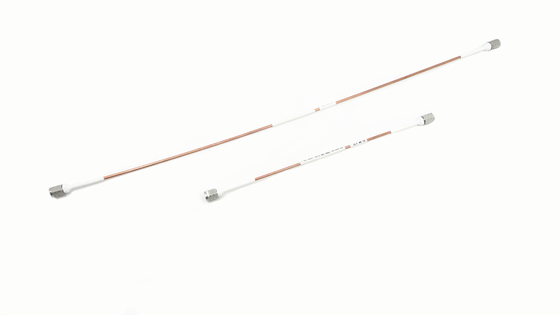

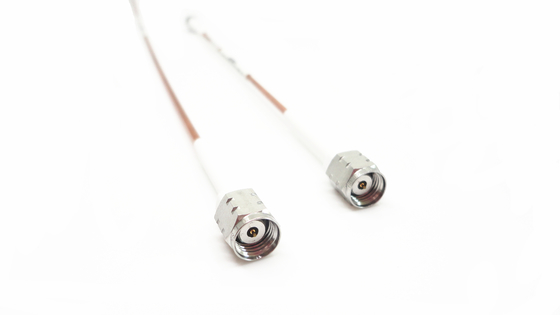

More Pictures of 1.85mm MMW Series Male RF Stainless Steel Plugs for Rigid RF Cable Assembly, L=200/400 mm:
Application:
1,High-frequency communication: The 1.85mm cable assembly is widely used in high-frequency communication systems, including satellite communication, radar systems, and wireless networks. Its ability to support frequencies up to 67 GHz makes it ideal for these applications.
2,Medical imaging: The connector's small size and lightweight design make it suitable for use in medical imaging equipment such as ultrasound machines and MRI scanners. It can also be used in other medical devices that require high-frequency connectivity.
3,Test and measurement equipment: The 1.85mm cable assembly is commonly used in test and measurement equipment, including network analyzers, spectrum analyzers, and signal generators. Its compact size and reliable connectivity make it an ideal choice for these applications.
