Product Details:
Payment & Shipping Terms:
|
| Item: | Millimeter Wave Connectors | Gender: | Female To Female |
|---|---|---|---|
| Material: | Stainless Steel | Keywords: | 1.85 Mm MMW Connectors |
| Plating: | Passivated | Application: | RF |
| Body Style: | Straight | ||
| High Light: | 1.85mm RF Adapter Connector,Stainless Steel RF Adapter Connector |
||

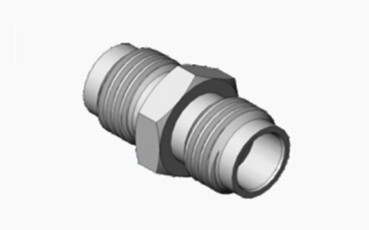

1.85mm Series Microwave Female to Female Stainless Steel RF Adapter Connector
Specification:
|
Electronic and Material Characterials |
||
| Impedance | 50Ohm | |
| Frequency Range | DC~67GHz | |
| Rated Voltage | 170 VRMS (Maximum sea-level) | |
| Dielectrics Voltage-resistance | 500 VRMS (Maximum sea-level) | |
| VSWR | ≤1.05+0.005f | |
| Insulation Resistance | ≥5000MΩ | |
| Center conductor | Male |
Beryllium bronze gold plated |
| Female | Beryllium bronze gold plated | |
| Shell and other metal parts |
Brass /stainless Stain gold plated /passivated |
|
| Insulator | PLF | |
| Seal ring | Silicon rubber | |
| Mating torque | 0.79 -1.13 N.m | |

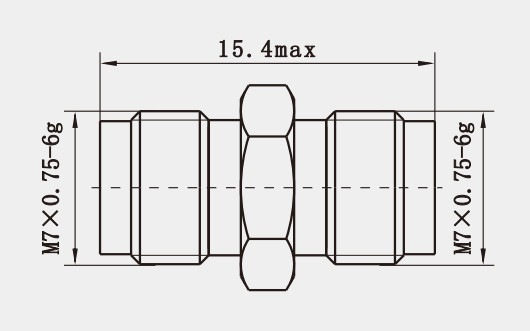

More Pictures of 1.85mm Series Microwave Female to Female Stainless Steel RF Adapter Connector
Features:
1. Compact Design:
The 1.85mm connector is smaller and lighter than other types of millimeter wave connectors, such as the 2.4mm connector, making it particularly suitable for portable and space-limited applications.
The compact design also helps improve the overall aesthetics and user experience of devices, making end products more portable and user-friendly.
2. Reliability:
The design of the 1.85mm connector ensures excellent mechanical and electrical performance, maintaining stable performance even under harsh environmental conditions.
High-quality materials such as beryllium bronze and stainless steel shells ensure the durability and long-term reliability of the connectors.
Gold plating further enhances the corrosion resistance and signal transmission stability of the connectors, making them suitable for stringent industrial and commercial applications.
Application:
The 1.85mm connector is widely used in high-frequency microwave measurements and millimeter wave devices, such as satellite communications and high-precision radar systems in high-end fields.
In semiconductor testing, high-speed data acquisition systems, and precise measurements in scientific research equipment, the 1.85mm connector also demonstrates its outstanding performance and reliability.
In summary, with its high performance, compact design, and wide range of applications, the 1.85mm connector has become an indispensable component in the fields of high-frequency communication and precision measurement.
