| Item: | Millimeter Wave Connectors | Gender: | Female |
|---|---|---|---|
| Material: | Brass | Keywords: | 1.85 Mm MMW Connectors |
| Plating: | Passivated | Application: | RF |
| Body Style: | Straight | ||
| High Light: | 1.85mm Female RF Connector,2mm Female RF Connector,Microstrip Hole Depth Female RF Connector |
||

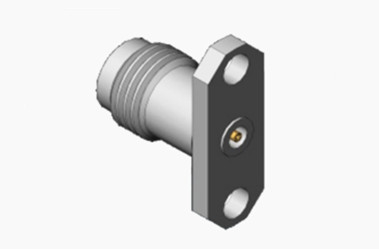

MMW Series 1.85mm Female RF Connector with Microstrip Hole Depth 2mm
Specification:
|
Electronic and Material Characterials |
||
| Impedance | 50Ohm | |
| Frequency Range | DC~67GHz | |
| Rated Voltage | 170 VRMS (Maximum sea-level) | |
| Dielectrics Voltage-resistance | 500 VRMS (Maximum sea-level) | |
| VSWR | ≤1.05+0.005f | |
| Insulation Resistance | ≥5000MΩ | |
| Center conductor | Male |
Beryllium bronze gold plated |
| Female | Beryllium bronze gold plated | |
| Shell and other metal parts |
Brass /stainless Stain gold plated /passivated |
|
| Insulator | PLF | |
| Seal ring | Silicon rubber | |
| Mating torque | 0.79 -1.13 N.m | |

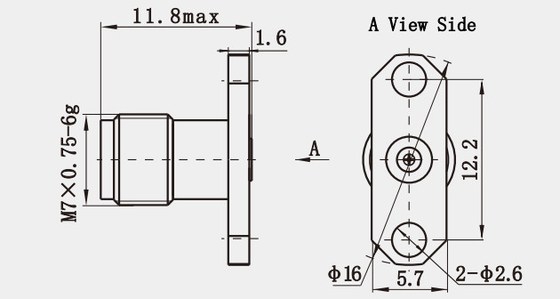

More Pictures of MMW Series 1.85mm Female RF Connector with Microstrip Hole Depth 2mm
Features:
1. Material Construction:
Made commonly from high-quality stainless steel and often plated with gold to enhance connection quality and corrosion resistance.
The use of stainless steel ensures the mechanical strength and durability of the connector, while gold plating effectively prevents oxidation and corrosion at the interface, maintaining excellent electrical performance.
2. Connection Reliability:
The design of the 1.85mm connector focuses on the reliability of the electrical connection, which is particularly important for stable high-frequency signal transmission.
The threaded connection method enhances the stability of the joint section, reducing issues with poor contact caused by environmental changes or physical impacts.
Application:
1. Commercial Electronics:
In the medical field, devices like Magnetic Resonance Imaging (MRI) and Computed Tomography (CT) scanners use 1.85mm connectors to transmit high-quality image data, which is critical for diagnostic accuracy.
With the advancement of the Internet of Things (IoT), more smart devices require miniaturized yet reliable high-speed connections. The 1.85mm connector, due to its small size and high performance, becomes the ideal choice for these devices.
2. Scientific Research and Measurement Technology:
In particle physics and nuclear fusion research, a significant amount of high-speed and high-frequency data transmission is needed. 1.85mm connectors play a key role in these precision experiments, connecting various detection and measurement instruments.
Advanced testing and measuring equipment, such as network analyzers and spectrum analyzers, also rely on 1.85mm connectors to ensure the accuracy and repeatability of test results.
