Professional Quality Assurance 1.85mm Male to Female Stainless Steel RF Connector Adapter
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Item: | Millimeter Wave Adapter | Gender: | Male To Female |
|---|---|---|---|
| Material: | Stainless Steel | Keywords: | 1.85mm MMW Connectors |
| Plating: | Passivated | Application: | RF |
| Body Style: | Straight | ||
| Highlight: | Professional Quality Assurance RF Connector Adapter,Stainless Steel RF Connector Adapter |
||
Professional Quality Assurance 1.85mm Male to Female Stainless Steel RF Connector Adapter
The 1.85mm connector is a high-performance millimeter wave connector designed for high-frequency applications, with operational frequencies of up to 67GHz. Featuring an air interface and threaded connection, this connector is compatible with the 2.4mm connector. With its small size, lightweight design, high-frequency capabilities, and reliable connections, it is widely used in high-frequency microwave measurements and millimeter wave devices.
Specification:
Note:The specific data of the model are based on the data in the product specification sheet.
|
Electronic and Material Characterials |
||
| Impedance | 50Ohm | |
| Frequency Range | DC~67GHz | |
| Rated Voltage | 170 VRMS (Maximum sea-level) | |
| Dielectrics Voltage-resistance | 500 VRMS (Maximum sea-level) | |
| VSWR | ≤1.05+0.005f | |
| Insulation Resistance | ≥5000MΩ | |
| Center conductor | Male |
Beryllium bronze gold plated |
| Female | Beryllium bronze gold plated | |
| Shell and other metal parts |
Brass /stainless Stain gold plated /passivated |
|
| Insulator | PEI/PLF | |
| Seal ring | Silicon rubber | |
| Mating torque | 0.79 -1.13 N.m | |

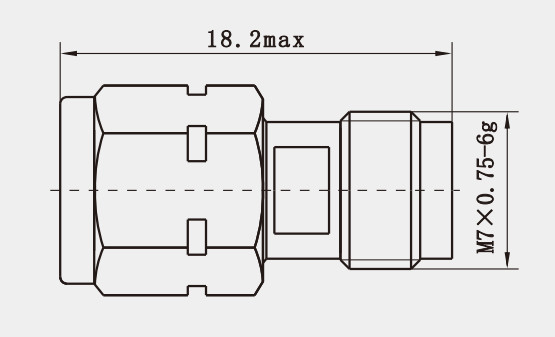

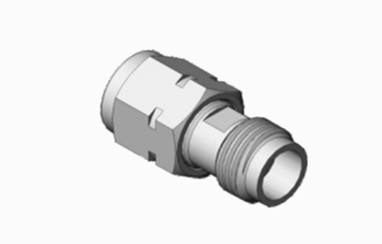

More Pictures of Professional Quality Assurance 1.85mm Male to Female Stainless Steel RF Connector Adapter :
Features:
Different grades: To meet the needs of different applications, 1.85 RF coaxial adapters are classified into metrology, instrumentation and production grades, each grade corresponding to different performance and cost.
Grade selection: When selecting an adapter, consider the accuracy requirements of the application environment and select the appropriate grade.
Application:
1. Microwave Measurement Equipment
High-Frequency Applications: In microwave measurement equipment, the 1.85mm operates up to 67GHz, making it an indispensable high-frequency connector in laboratory measurement equipment.
Multiple Grade Options: Depending on accuracy needs, one can choose between metrology, instrumentation, and production grades of the 1.85mm, ensuring accuracy and consistency in different testing scenarios.
2. Mobile Communication Base Stations
Signal Forwarding: Mobile communication base stations require efficient forwarding of a large number of signals. The 1.85mm is widely used in these devices due to its superior electrical performance indicators.
Interoperability: It can be interchanged with the 2.4mm connector, enhancing the flexibility and compatibility of mobile communication base station equipment.
