1.85mm Male to Female Stainless Steel RF Adapter with Flange Mount RF Connector
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Item: | Millimeter Wave Adapter | Gender: | Male To Female |
|---|---|---|---|
| Material: | Stainless Steel | Keywords: | 1.85mm MMW Connectors |
| Plating: | Passivated | Application: | RF |
| Body Style: | Straight | ||
| Highlight: | 1.85mm Male to Female RF Adapter,Flange Mount RF Adapter,Stainless Steel RF Adapter |
||
1.85mm Male to Female Stainless Steel RF Adapter with Flange Mount RF Connector
The 1.85mm connector is a high-performance millimeter wave connector designed for use in high-frequency applications, with operational frequencies reaching up to 67GHz. Utilizing an air interface and a threaded connection, this connector is interchangeable with the 2.4mm connector. Boasting a compact size, lightweight construction, high-frequency capabilities, and reliable connections, it is widely employed in high-frequency microwave measurements and millimeter wave devices.
Specification:
Note:The specific data of the model are based on the data in the product specification sheet.
|
Electronic and Material Characterials |
||
| Impedance | 50Ohm | |
| Frequency Range | DC~67GHz | |
| Rated Voltage | 170 VRMS (Maximum sea-level) | |
| Dielectrics Voltage-resistance | 500 VRMS (Maximum sea-level) | |
| VSWR | ≤1.05+0.005f | |
| Insulation Resistance | ≥5000MΩ | |
| Center conductor | Male |
Beryllium bronze gold plated |
| Female | Beryllium bronze gold plated | |
| Shell and other metal parts |
Brass /stainless Stain gold plated /passivated |
|
| Insulator | PEI/PLF | |
| Seal ring | Silicon rubber | |
| Mating torque | 0.79 -1.13 N.m | |

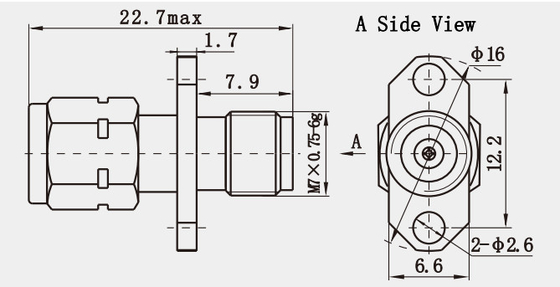

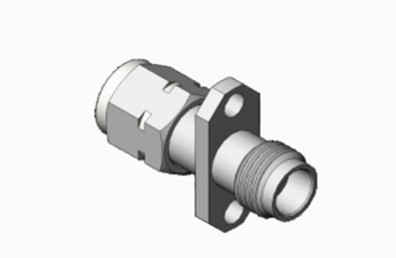

More Pictures of 1.85mm Male to Female Stainless Steel RF Adapter with Flange Mount RF Connector:
Features:
1.85 RF coaxial adapter is a kind of coaxial connector used for transmitting RF signals, with precise electrical performance index and stable physical characteristics.
The 1.85 RF coaxial adapter plays a vital role in RF communications, radar systems, satellite communications and microwave measurements. The design methodology and test results show that the adapter can operate efficiently in the millimetre-wave band.
Application:
1. 1.85mm Satellite Communication Systems
Efficient Signal Transmission: In satellite communication systems, the 1.85mm is used for signal transmission between antennas and receiving/transmitting equipment. Its low voltage standing wave ratio (VSWR) and insertion loss ensure efficient and reliable signal transmission.
Equipment Connection: Given its reasonable design and high reliability, the 1.85mm is widely used in the connection of equipment at satellite communication ground stations, ensuring stable system operation.
2. Radar Systems
High-Precision Measurement: Radar systems require high precision in radio frequency measurement. The 1.85mm's insertion loss of less than 0.4dB meets the demand for precise signal control in radar systems.
Durability: With an actual inner conductor retention force of 40N, it ensures firm and durable connections even in harsh external environments.
