1.85mm MMW Series Male RF Stainless Steel Plugs For Soft RF Cable Assembly 200 / 400 Mm

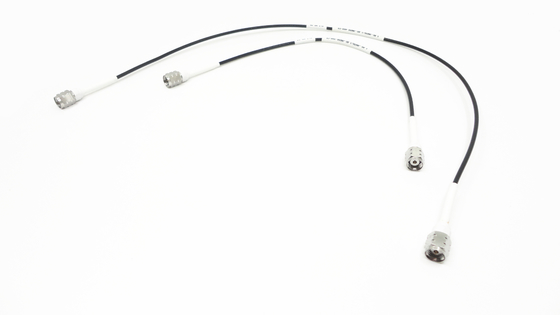

Large Image : 1.85mm MMW Series Male RF Stainless Steel Plugs For Soft RF Cable Assembly 200 / 400 Mm Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	ELT
Certification:	ROHS ISO-9001-2015
Model Number:	1.85-J865G/1.85-J865G-200/400

Payment & Shipping Terms:

Minimum Order Quantity:	20pcs
Price:	Negotiable
Packaging Details:	Standard Export Carton
Delivery Time:	Within 3 weeks
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	35000pcs/year

Contact Now

Detailed Product Description

Item:	Millimeter Wave Cable Assembly	Gender:	Male
Material:	Stainless Steel	Keywords:	1.85 Mm MMW Connectors
Plating:	Passivated	Application:	RF
Body Style:	Straight
High Light:	Soft RF Cable Assembly Plugs , Male 1.85mm RF Connector , 400mm Male RF Stainless Steel Plugs

1.85mm MMW Series Male RF Stainless Steel Plugs for RF Cable Assembly, L=200/400 mm

The 1.85mm connector is a state-of-the-art millimeter wave connector with a usage frequency that can reach up to 67 GHz. It utilizes an air interface and threaded connection, making it interchangeable with the 2.4mm connector. This connector boasts the benefits of compactness, lightweight design, high operational frequency, and dependable connectivity. It is widely employed in high-frequency microwave measurements and millimeter wave devices.

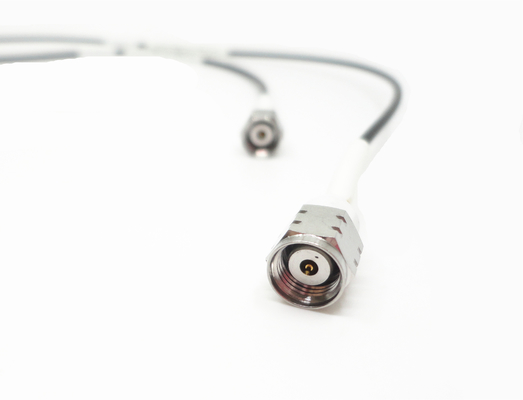

1.85mm MMW Series Male RF Stainless Steel Plugs For Soft RF Cable Assembly 200 / 400 Mm 0

Specification:

Electronic and Material Characterials
Impedance		50Ohm
Frequency Range		DC~67GHz
Rated Voltage		170 VRMS (Maximum sea-level)
Dielectrics Voltage-resistance		500 VRMS (Maximum sea-level)
VSWR		≤1.3
Insulation Resistance		≥5000MΩ
Center conductor	Male	Beryllium bronze gold plated
	Female	Beryllium bronze gold plated
Shell and other metal parts		Brass /stainless Stain gold plated /passivated
Insulator		PEI/PLF
Seal ring		Silicon rubber
Mating torque		0.79 -1.13 N.m

More Pictures of 1.85mm MMW Series Male RF Stainless Steel Plugs for RF Cable Assembly, L=200/400 mm:

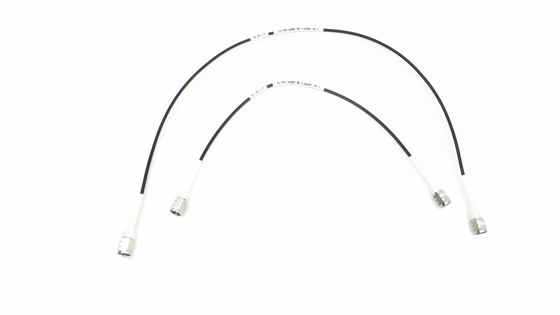

1.85mm MMW Series Male RF Stainless Steel Plugs For Soft RF Cable Assembly 200 / 400 Mm 1

Application:

Network	Satcom
Computer/LANs	Computer/LANs
Mobile communication	Instrumentation
Base Station	Mobile communication
Outdoor facilities	Radar,microwave
Telecommunications	Instrumentation
Automotive	Jump line join
Basic facility	Radio, TV aerial system
