50Ohm MMW 2.4mm RF Connector Female Jack Straight RF Connector
2.4 Type product is a high performance millimeter wave connector, the frequency is 50 GHz, use air interface threaded connect with characteristics of small volume, light weight, high use frequency, reliable connect, it is widely used in high frequency microwave measurement and millimeter wave devices.
The high precision 50 ohm coaxial 2.4mm connectors for general-purpose RF and microwave use. These high performance connectors are used in a wide variety of test and measurement settings ranging from cellular to satellite communications for the proper matching of equipment and cable interconnect. The connectors are constructed from a durable stainless steel and are designed to withstand repeated use. They feature an air dielectric with a loss-loss plastic center conductor support.
Specification of 50Ohm MMW 2.4mm RF Connector Female Jack Straight RF Connector(mm):
|
Electrical Characteristics
|
||||
|
Impedance
|
50Ω
|
|||
|
Frequency Range
|
DC～50GHz
|
|||
|
Rated Voltage
|
170VRMS (Maximum sea-level)
|
|||
|
Dielectrics Voltage-resistance
|
500VRMS (Maximum sea-level)
|
|||
|
Insulation Resistance
|
≥5000MΩ
|
|||
|
Contact Resistance |
Outer conductor
|
≤2mΩ
|
||
|
Center conductor
|
≤3mΩ
|
|||
|
VSMR
|
≤1.05+0.005f
|
|||

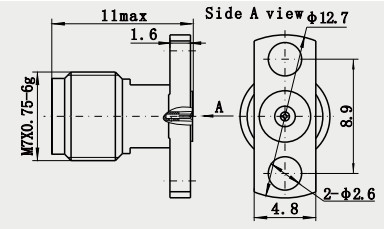

Detailed Drawing of 50Ohm MMW 2.4mm RF Connector Female Jack Straight RF Connector(mm):
| Model No. | Description |
| 2.4-KFD26G | 2.4mm Male Straight RF Connector |
•Stainless steel construction
•Superior electrical performance to 50 GHz
•Connectors in End Launch and Flange options
•Adapters to 2.4mm, SMP, 2.92mm, SMA
| Normal products | Elite products | |
| Frequency Range | DC~40GHz | DC~65GHz |
| VSWR | ≤1.35 | ≤1.3 |
| Durability | 300 Cycles | >500 Cycles |
Application:
* Research centres
* Satellite communications
* Avionics, radars
* Navigation systems
* Missiles and guidance systems
* Telecommunication systems
* Instrumentation
* Automotive
* Computer/LANs
* Telecommunications
