Product Details:
Payment & Shipping Terms:
|
| Product Name: | 2.4mm RF Coaxial Conector | Plating: | Gold Plated |
|---|---|---|---|
| Impedance: | 50Ω | Certificate: | CE ROHS |
| Type: | Male | VSWR: | ≤1.05+0.005f |
| Material: | Brass | Frequency Range: | DC～50GHz |
| High Light: | Flange Mount 2.4mm RF Connector,2 Holes 2.4mm RF Connector,Flange Mount sma rf connector |
||

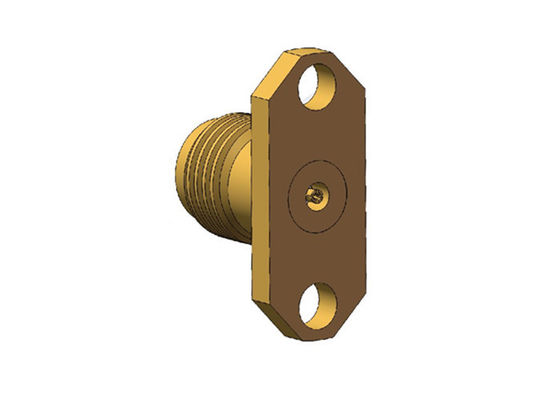

High frequency 2.4mm 2-holes Flange Mount Millimeter Wave Connector
2.4 Type product is a high performance millimeter wave connector, the frequency is 50GHz, use air interface threaded connect with characteristics of small volume, light weight, high use frequency, reliable connect, it is widely used in high frequency microwave measurement and millimeter wave devices.
The high precision 50 Ohm coaxial 2.4mm connectors for general-purpose RF and microwave use. These high performance connectors are used in a wide variety of test and measurement settings ranging from cellular to satellite communications for the proper matching of equipment and cable interconnect. The connectors are constructed from a durable stainless steel and are designed to withstand repeated use. They feature an air dielectric with a loss-loss plastic center conductor support.
Outline Drawing of 2.4mm RF Coaxial Conector:(mm)
Specification of 2.4mm RF Coaxial Conector:
|
Electrical Characteristics
|
||||
|
Impedance
|
50Ω
|
|||
|
Frequency Range
|
DC～50GHz
|
|||
|
Rated Voltage
|
170VRMS (Maximum sea-level)
|
|||
|
Dielectrics Voltage-resistance
|
500VRMS (Maximum sea-level)
|
|||
|
Insulation Resistance
|
≥5000MΩ
|
|||
|
Contact Resistance |
Outer conductor
|
≤2mΩ
|
||
|
Center conductor
|
≤3mΩ
|
|||
|
VSMR
|
≤1.05+0.005f
|
|||
Interface Dimentions:
Features:
• The 2.4mm connector is a precision microwave connectors.
• Stainless steel construction
• Superior electrical performance to 50GHz
• Connectors in End Launch and Flange options
• Adapters to 2.4mm, SMP, 2.92mm, SMA.
• Great for applications that require high frequency transmission
• Connector mating interface per MIL-STD-348
• Superior electrical performance up to 50GHz
• Excellent reliability where extreme shock & vibration conditions are experienced
• Quick connect cable plugs and adapter
Advantages:
| Normal products | Elite products | |
| Frequency Range | DC~40GHz | DC~65GHz |
| VSWR | ≤1.35 | ≤1.3 |
| Durability | 300 Cycles | >500 Cycles |
Application:
Our Main Products:
| RF Adapter |
| SMA/SSMA RF Connector |
| SMP/SSMP RF Connector |
| TNC RF Connector |
| N Type RF Connector |
| MCX/MMCX RF Connector |
| BNC RF Connector Millimeter Wave Connectors(2.4mm, 2.92mm) |
| RF Cable Assemblies |
| Waveguide to Coaxial Adapter |
| Glass-to-metal Hermetic Seals |
| J30J Series Connector |
| Microwave Rotary Joints |
NOTE:
We have over 10,000 types of Connector, if the connector you are using is not found, please contact us with your details.
