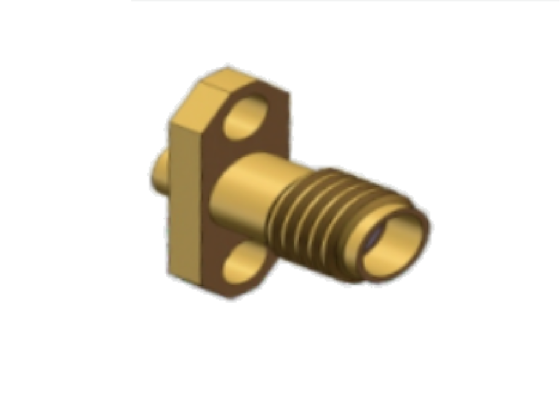

50Ω 2 Holes Flange Mount Jack Mini SMA Female RF Coaxial .086 Cable Connector 18GHz

50Ω 2 Holes Flange Mount Jack Mini SMA Female RF Coaxial .086 Cable Connector 18GHz
50Ω 2 Holes Flange Mount Jack Mini SMA Female RF Coaxial .086 Cable Connector 18GHz

Large Image :  50Ω 2 Holes Flange Mount Jack Mini SMA Female RF Coaxial .086 Cable Connector 18GHz Get Best Price

Product Details:
Place of Origin: Xi'an, China
Brand Name: ELT
Certification: RoHS
Model Number: SSMA-KFB2-2
Document: Catalog SSMA-mating .086 Ca...ic.pdf
Payment & Shipping Terms:
Minimum Order Quantity: In Stock, MOQ 50 for new production
Price: Depending on the quantity
Packaging Details: 1pcs/plastic bag;100pcs/carton
Delivery Time: 5-7 working days for stocked quantity
Payment Terms: T/T or LC
Supply Ability: As requirements
Contact Now
Detailed Product Description
Product Name: Mini SMA 2 Hole Flange Mount Jack Cable Connector Model: SSMA-KFB2-2
Frequency Range: 0.3MHz-18GHz Impedance: 50Ω
DWV: 750V Insulation Resistance: ≥5000MΩ
Center Conductor: Copper Alloy, Gold Plated Outer Conductor: Copper Alloy, Gold Plated
Mating Cable: .086 Cable Insulators: PTFE
Highlight:

SMA female RF coaxial connector

,

18GHz flange mount jack

,

50Ω SSMA cable connector

50Ω Mini SMA 2 Holes Flange Mount Jack Mini SMA Female RF Coaxial .086 Cable Connector 18GHz
Mini SMA RF Coaxial connectors are precision 50 ohm connectors designed to operate mode-free up to 30GHz. They are commonly used in applications requiring reduced size and higher package density. The standard Mini SMA interface uses a PTFE dielectric. Elite Electronic offers  Mini SMA connectors for semi-rigid, semi-flexible, and low-loss flexible cables, as well as flange mount, bulkhead screw mount, PCB mount, and precision adapters that can be customized for specific applications.

The Mini SMA RF coaxial connector is a miniaturized version of the SMA connector, designed to be 30% smaller while maintaining excellent performance. Featuring a threaded interface (10-36UNF-2) and a 50Ω characteristic impedance, these connectors support frequencies up to 30GHz.
Mini SMA Design Features
  • Compact design - 30% smaller than standard SMA connectors
  • Wide frequency band operation up to 30GHz
  • Rugged construction for reliability
  • Available in multiple configurations: straight, right angle, bulkhead,  PCB and flange mount options
  • Low VSWR & Insertion loss


Interface of Mini SMA RF Coaxial Connectors
Interface of Mini SMA RF Coaxial Connectors
SSMA RF Coaxial Connector interface dimensions diagram
2 Hole Flange Mount Mini SMA Male RF Coaxial .086 Cable Connector:
Model No.: SSMA-KFB2-2
50Ω 2 Holes Flange Mount Jack Mini SMA Female RF Coaxial .086 Cable Connector 18GHz 1
  Model No.: SSMA-KFB2
50Ω 2 Holes Flange Mount Jack Mini SMA Female RF Coaxial .086 Cable Connector 18GHz 2
Similar Models Mini SMA 2 Hole Flange Mount Stainless Steel Housting for .086 Cable
 50Ω 2 Holes Flange Mount Jack Mini SMA Female RF Coaxial .086 Cable Connector 18GHz 3
Note: Please check our catalog for more similar models according to your application.
Applications
Xi'an Elite Electronic specializes in systematic interconnection solutions for demanding industries including:
  • Aerospace and aviation systems
  • Navigation and radar equipment
  • Communication systems
  • Measurement instruments
  • Electronics applications
Industrial applications of SSMA connectors
Packaging & Shipping
Each Mini SMA 2 hole flange mount .086 cable RF Coaxial Connector is carefully packaged to ensure protection during transportation:
We use reliable courier services for prompt delivery, providing customers with tracking information upon shipment.
50Ω 2 Holes Flange Mount Jack Mini SMA Female RF Coaxial .086 Cable Connector 18GHz 5
For additional similar product models information, please check our catalog or contact our sales team at:
sales3@xa-elite.com.cn

Tag:

SSMA female RF connector 18GHz,

50 ohm flange mount connector,

SSMA RF connector with warranty
