2-Hole Panel Mount Copper Alloy Housing Gold Plating Mini SMA Jack RF Coax Connector Up To 18GHz
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | Mini SMA Female Panel Connector | Model: | SSMA-KFD178 |
|---|---|---|---|
| Frequency Range: | 0.3MHz-18GHz | Impedance: | 50Ω |
| DWV: | 750V | Insulation Resistance: | ≥5000MΩ |
| Center Conductor: | Copper Alloy, Gold Plated | Outer Conductor: | Copper Alloy, Gold Plated |
| Mount Method: | 2 Hole Panel Mount | Insulators: | PTFE |
| Highlight: | 2-hole panel mount SMA connector,gold plating RF coax connector,copper alloy SMA jack 18GHz |
||
Product Description:
Mini SMA Series RF coaxial connector is a miniaturized product of SMA connector.
SSMA RF coaxial connectors are the ultra-compact miniaturized derivative of standard SMA interfaces, engineered to solve space limitation in high-density microwave systems. Occupying merely 70% of the overall dimension of conventional SMA connectors, they deliver unparalleled space-saving layout capability for compact PCB modules and mini test fixtures.
Featuring ultra-small form factor, ultra-wide broadband response, superior electrical consistency and robust mechanical stability, this threaded connector series boasts outstanding long-term reliability under vibration and temperature cycling. Adopting precise 10-36UNF-2 threaded locking structure with standardized 50Ω characteristic impedance, SSMA connectors support stable signal transmission across DC to 30GHz, far exceeding the effective upper frequency limit of ordinary SMA connectors.
Built for high-precision millimeter-wave signal integrity, SSMA connectors maintain ultra-low VSWR and minimal insertion loss at full bandwidth, eliminating signal distortion and measurement deviation common with oversized SMA interfaces at 26.5GHz+. Widely adopted across high-end microwave communication, precision test & measurement equipment, aerospace avionics, phased array radar, electronic systems and compact RF sensing modules, it serves as the optimal upgrade solution when standard SMA connectors cannot meet miniaturization and high-frequency demands.
SSMA RF Coax Connectors' Interface Dimenstion:
Outline Dimension of 2 Hole Flange Mount Copper Alloy SSMA Female RF Coaxial Microstrip Connectors : SSMA-KFD178 (Unit: mm)
Regarding this series, we have some simiar model with copper alloy shell, stainless steel housing, the model with different whole length, different length of Insulation Convex Surface and different length of pins and OD 0.88mm, 0.6mm,0.5mm, 0.3mm to meet the clients varity needs.

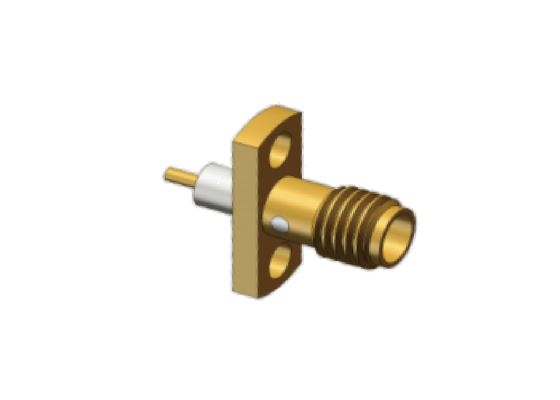

2 Hole Panel Mount Copper Alloy Mini SMA Female RF Coax Connectors with Insulation Convex Surface : SSMA-KFD178
Other Similar Model:
2 Hole Panel Mount Stainless Steel Mini SMA Jack RF Coax Connectors: SSMA-KFD211G and SSMA-KFD214G
Applications:
Xi'an Elite Electronic is a Leading manufacturer of Systematic Interconnection Solution mainly serving the aerospace, aviation, navigation, radar, communications, measurement, electronics fields.
Our high quality proudcts use the finest materials and strict processes to ensure the durability and reliability in harsh environment.
Packing & Shipping:
Packaging:
The 2 Hole Panel Mount SSMA Female RF Coaxial Connector is carefully packaged in carton to ensure its protection during transit.
Shipping:
We ship the Panel Mount SSMA Connector using a reliable courier service to ensure safe and prompt delivery to our customers. Customers will get a tracking NO. after the shipment.
