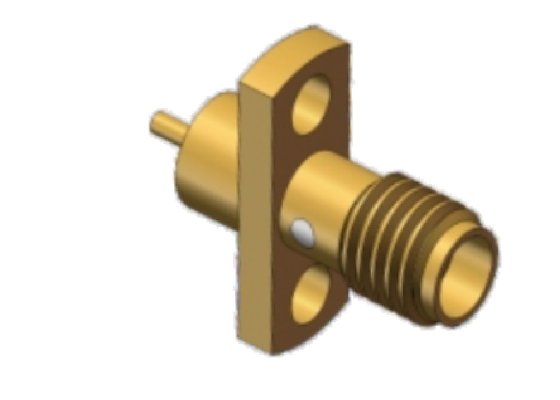

SSMA Female SSMA Jack Flange Mount 18GHz VSWR less than 1.3 Using Microwave Component
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | SSMA RF Connector | Model: | SSMA-KFD19 |
|---|---|---|---|
| Frequency Range: | 0.3MHz-18GHz | Housing: | Copper Alloy Gold Plating |
| Contacts: | Copper Alloy, Gold Plating | Insulator: | PTFE |
| Insulation Resistance: | >5000MΩ | DWV: | 750V |
| Impendence: | 50Ω | Temperature: | -55℃～+125℃ |
| In Stock: | Samples In Stock | ||
| Highlight: | SSMA female jack flange mount,18GHz SSMA RF connector,SSMA connector with low VSWR |
||
Product Description:
|
Electrical Characteristics
|
||
|
Impedance
|
50Ω
|
|
|
Frequency Range
|
DC~18GHz
|
|
|
Rated Voltage
|
250VRMS
|
|
|
Dielectrics Voltage-resistance
|
750VRMS
|
|
|
Insulation Resistance
|
≥5000MΩ
|
|
|
|
Outer conductor
|
Normal≤2.5mΩ
|
|
Center conductor
|
Normal≤4mΩ
|
|
|
VSWR
|
≤1.3
|
|
| VSWR | DC~18GHz | 18GHz~26.5GHz | 26.5~40GHz | |
| Straight | ≤1.3 | ≤1.35 | ≤1.4 | |
| Right Angle | ≤1.3 | |||
| Adapter | ≤1.3 | ≤1.35 | ≤1.4 | |
| Others | ≤1.3 |
The outline demension of Stainless Steel Passivation SSMA RF Connectors Model: SSMA-KFD19
