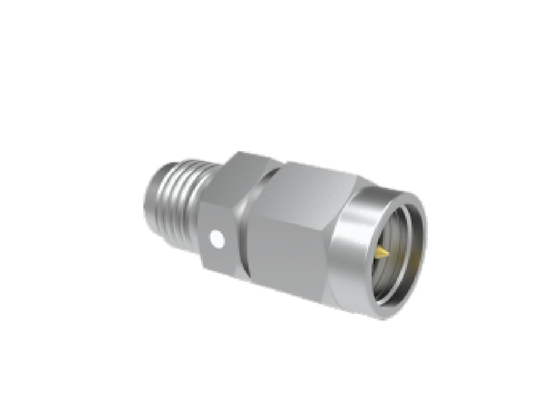

50Ω SMA Male to Female Adapter Aerospace RF Connectors up to 18GHz with Low Insertion Loss

50Ω SMA Male to Female Adapter Aerospace RF Connectors up to 18GHz with Low Insertion Loss
50Ω SMA Male to Female Adapter Aerospace RF Connectors up to 18GHz with Low Insertion Loss

Large Image :  50Ω SMA Male to Female Adapter Aerospace RF Connectors up to 18GHz with Low Insertion Loss Get Best Price

Product Details:
Place of Origin: Xi'an, China
Brand Name: ELT
Certification: RoHS
Model Number: SMA-JKG
Payment & Shipping Terms:
Minimum Order Quantity: MOQ 50 for new production
Price: Depending on the quantity
Packaging Details: 1pcs/plastic bag;100pcs/carton
Delivery Time: 5-7 working days for stocked quantity
Payment Terms: T/T or LC
Supply Ability: As requirements
Contact Now
Detailed Product Description
Product Name: SMA Male To Female Adapter Model: SMA-JKG
Frequency Range: 0.3MHz-18GHz Impedance: 50Ω
DWV: 1000V Insulation Resistance: ≥5000MΩ
Center Conductor: ≤3mΩ; Copper Alloy, Gold Plated Outer Conductor: ≤2mΩ; Stainless Steel，Passivation
Insulators: PTFE Samples: In Stock
VSWR: ≤1.25 Insertion Loss: ≤0.25dB
Temperature: -55℃ ~125℃ Durability: 500 Cycles
Highlight:

50Ω SMA male to female adapter

,

Aerospace RF connectors up to 18GHz

,

Low insertion loss SMA adapter

50Ω SMA Male to Female Adapter Aerospace RF Connectors up to 18GHz with Low Insertion Loss

The SMA product series RF coaxial connector is a compact high-frequency coaxial connector with an operating frequency up to 18 GHz. It features small size, wide frequency bandwidth, excellent mechanical and electrical performance, and reliable connection. It is one of the most widely used RF coaxial connectors, and is extensively applied in aviation, aerospace, marine and other fields.


SMA Design Features
  • Compact design
  • Frequency band operation up to 18GHz
  • Rugged construction for reliability, Screw 1/4-36UNS-2A
  • Available in multiple configurations: straight, right angle, bulkhead,  PCB and flange mount options
  • Low VSWR & Insertion loss


Interface of SMA RF Coaxial Connectors

50Ω SMA Male to Female Adapter Aerospace RF Connectors up to 18GHz with Low Insertion Loss 0
Stainless Steel SMA Male to Female Adapter, Model No.: SMA-JKG
50Ω SMA Male to Female Adapter Aerospace RF Connectors up to 18GHz with Low Insertion Loss 1
Note: Please check our catalog for more similar models according to your application.
Applications
Xi'an Elite Electronics specializes in systematic interconnection solutions for demanding industries including:
  • Aerospace and aviation systems
  • Navigation and radar equipment
  • Communication systems
  • Measurement instruments
  • Electronics applications
50Ω SMA Male to Female Adapter Aerospace RF Connectors up to 18GHz with Low Insertion Loss 2
Packaging & Shipping
Each SMA adapter aerospace RF Connectors is carefully packaged to ensure protection during transportation:
We use reliable courier services for prompt delivery, providing customers with tracking information upon shipment.
50Ω SMA Male to Female Adapter Aerospace RF Connectors up to 18GHz with Low Insertion Loss 3
For additional similar product models information, please check our catalog or contact our sales team at:
sales3@xa-elite.com.cn
