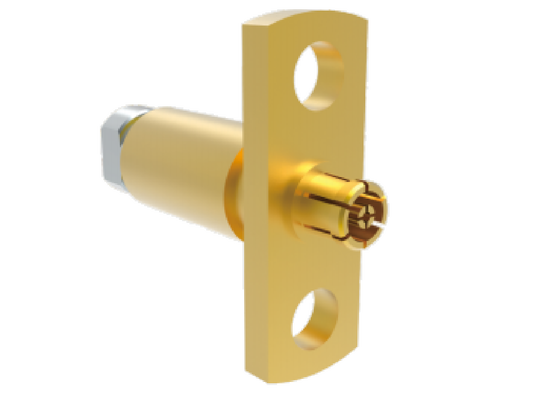

50Ω 50GHz SMPM Female Flange Mount Aerospace RF Connectors Mating for Low Loss Cable .086

50Ω 50GHz SMPM Female Flange Mount Aerospace RF Connectors Mating for Low Loss Cable .086
50Ω 50GHz SMPM Female Flange Mount Aerospace RF Connectors Mating for Low Loss Cable .086

Large Image :  50Ω 50GHz SMPM Female Flange Mount Aerospace RF Connectors Mating for Low Loss Cable .086 Get Best Price

Product Details:
Place of Origin: Xi'an, China
Brand Name: ELT
Certification: RoHS
Model Number: SMPM(M)-KFB2-17
Payment & Shipping Terms:
Minimum Order Quantity: MOQ 50 for new production
Price: Depending on the quantity
Packaging Details: 1pcs/plastic bag;100pcs/carton
Delivery Time: 5-7 working days for stocked quantity
Payment Terms: T/T or LC
Supply Ability: As requirements
Contact Now
Detailed Product Description
Product Name: SMPM Female Flange Connector Model: SMPM(M)-KFB2-17
Frequency Range: 0.3MHz-50GHz Impedance: 50Ω
DWV: 500V Insulation Resistance: ≥5000MΩ
Center Conductor: ≤8mΩ; Copper Alloy, Gold Plated Outer Conductor: ≤3.5mΩ; Copper Alloy, Gold Plated
Insulator: PEI VSWR: ≤1.45
Insertion Loss: ≤0.4dB Mating Cable: Low Loss .086 Cable
Temperature: -55℃ ~125℃ Durability: 500 Cycles
Highlight:

50GHz SMPM female flange mount connector

,

Aerospace RF connector with 50Ω impedance

,

Low loss cable SMPM connector .086

50Ω 50GHz SMPM Female Flange Mount Mating for Low Loss Cable .086 Aerospace RF Connectors



The SMPM series connector is a subminiature push-on RF coaxial connector. It features compact size (smaller than the SMP series), light weight and wide operating frequency bandwidth, with a maximum operating frequency up to 50 GHz. The male connector is available in two interface types: full detent and smooth bore. Its blind-mate interconnection allows axial and radial floating of the mating structure. It is suitable for RF and microwave signal transmission as well as modular dense mounting applications, and is widely used in vehicle-borne, ship-borne and satellite-borne fields.



SMPM Design Features
  • Compact design
  • Frequency band operation up to 40GHz
  • Rugged construction for reliability
  • Available in multiple configurations: straight, right angle, bulkhead,  PCB and flange mount options
  • Low VSWR & Insertion loss


Interface of SMPM RF Coaxial Connectors
50Ω 50GHz SMPM Female Flange Mount Aerospace RF Connectors Mating for Low Loss Cable .086 0

50Ω 50GHz SMPM Female Flange Mount Mating for Low Loss Cable .086 Aerospace RF Connectors
Model No.:  SMPM(M)-KFB2-17
50Ω 50GHz SMPM Female Flange Mount Aerospace RF Connectors Mating for Low Loss Cable .086 1
Technical Data:
Items SMPM(M)-KFB2-17
Frequency Range 0.04GHz~18GHz 18GHz~26.5GHz 26.5GHz~40GHz 40GHz~50GHz
VSWR ≤ 1.25 ≤ 1.3 ≤ 1.35 ≤ 1.45
Insertion Loss ≤ 0.25dB ≤ 0.3dB ≤ 0.35dB ≤ 0.45dB

Note: Please contact sales freely for more product information.
Note: Please check our catalog for more similar models according to your application.
Applications
Xi'an Elite Electronics specializes in systematic interconnection solutions for demanding industries including:
  • Aerospace and aviation systems
  • Navigation and radar equipment
  • Communication systems
  • Measurement instruments
  • Electronics applications
50Ω 50GHz SMPM Female Flange Mount Aerospace RF Connectors Mating for Low Loss Cable .086 2
Packaging & Shipping
Each SMPM connector aerospace RF Connectors is carefully packaged to ensure protection during transportation:
We use reliable courier services for prompt delivery, providing customers with tracking information upon shipment.
50Ω 50GHz SMPM Female Flange Mount Aerospace RF Connectors Mating for Low Loss Cable .086 3
