50Ω 18GHz SMP Jack to Jack Adapter Aerospace RF Connectors with Low Insertion Loss
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | SMP Female To Female Adapter | Model: | SMP-KK45 |
|---|---|---|---|
| Frequency Range: | 0.3MHz-18GHz | Impedance: | 50Ω |
| DWV: | 500V | Insulation Resistance: | ≥5000MΩ |
| Center Conductor: | ≤6mΩ; Copper Alloy, Gold Plated | Outer Conductor: | ≤3mΩ; Copper Alloy, Gold Plated |
| Insulators: | PTFE | VSWR: | ≤1.3 |
| Insertion Loss: | ≤0.3dB | Temperature: | -55℃ ~125℃ |
| Durability: | 500 Cycles | ||
| Highlight: | 18GHz SMP Jack to Jack adapter,50Ω aerospace RF connector,low insertion loss RF adapter |
||

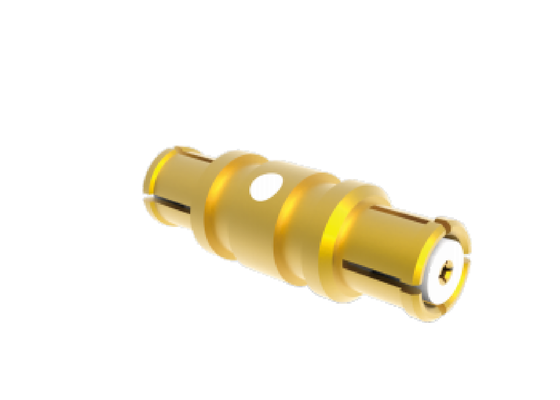

50Ω 18GHz SMP Jack to Jack Adapter Aerospace RF Connectors with Low Insertion Loss
As premium miniature push-fit RF coaxial interconnect components, SMP series connectors stand out in compact layout design and broad frequency coverage reaching maximum 40GHz operating range. Different from traditional threaded RF connectors, it adopts effortless push-on mating structure with three distinct locking types to meet diverse fastening demands. Built-in floating tolerance design enables convenient blind mating, effectively offsetting assembly deviation in multi-direction. With outstanding adaptability for dense module layout, these high-frequency connectors guarantee low-loss microwave signal transmission, widely adopted in vehicle-mounted communication, ship-borne radar and satellite-borne aerospace communication equipment for harsh environment stable connection.
SMP Design Features
- Compact design
- Frequency band operation up to 40GHz
- Rugged construction for reliability
- Available in multiple configurations: straight, right angle, bulkhead, PCB and flange mount options
- Low VSWR & Insertion loss
Interface of SMP RF Coaxial Connectors
50Ω 18GHz SMP Jack to Jack Adapter Aerospace RF Connectors with Low Insertion Loss
Model No.: SMP-KK45 , with SMP Adapter Length =12.7
Other different length SMP Jack to Jack Adapters:
| Model No. | Length of SMP Jack to Jack Adapters | OD of SMP |
| SMP-KK45 | 12.7mm | 4mm |
| SMP-KK | 6.47mm | 3.4mm |
| SMP-KK3 | 8.1mm | 3.4mm |
| SMP-KK46 | 7.4mm | 3.4mm |
| SMP-KK167 | 14.3mm | 3.4mm |
| SMP-KK180 | 12.3mm | 3.4mm |
| SMP-KK175 | 6.9mm | 3.4mm |
| SMP-KK193 | 6mm | 3.4mm |
| SMP-KK207 | 14.8mm | 3.6mm |
| SMP-KK330 | 7.8mm | 3.8mm |
| SMP-KK347 | 9.1mm | 3.4mm |
| SMP-KK351 | 5.6mm | 3.4mm |
| SMP-KK463 | 15.1mm | 3.4mm |
Note: Please contact us freely for detailed datasheet.
Note: Please check our catalog for more similar models according to your application.
Applications
Xi'an Elite Electronics specializes in systematic interconnection solutions for demanding industries including:
- Aerospace and aviation systems
- Navigation and radar equipment
- Communication systems
- Measurement instruments
- Electronics applications
Packaging & Shipping
Each SMP adapter aerospace RF Connectors is carefully packaged to ensure protection during transportation:
We use reliable courier services for prompt delivery, providing customers with tracking information upon shipment.
