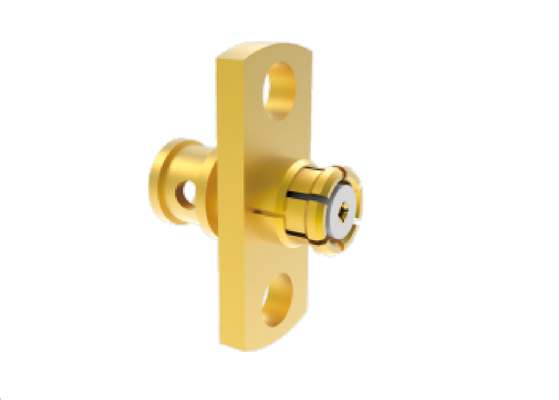

50Ω 18GHz SMP Jack 2 Hole Flange Aerospace RF Connectors Mating for CXN3506 Cable
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | SMP Cable Connector | Model: | SMP-KF506-25 |
|---|---|---|---|
| Frequency Range: | 0.3MHz-18GHz | Impedance: | 50Ω |
| DWV: | 500V | Insulation Resistance: | ≥5000MΩ |
| Center Conductor: | ≤6mΩ; Copper Alloy, Gold Plated | Outer Conductor: | ≤3mΩ; Copper Alloy, Gold Plated |
| Insulators: | PTFE | Mating Cable: | CNX3506 |
| VSWR: | ≤1.3 | Insertion Loss: | ≤0.4dB |
| Temperature: | -55℃ ~125℃ | Durability: | 500 Cycles |
| Highlight: | 50Ω 18GHz SMP RF connector,2 hole flange aerospace connector,SMP jack for CXN3506 cable |
||
50Ω 18GHz SMP Jack 2 Hole Flange Aerospace RF Connectors Mating for CXN3506 Cable
As premium miniature push-fit RF coaxial interconnect components, SMP series connectors stand out in compact layout design and broad frequency coverage reaching maximum 40GHz operating range. Different from traditional threaded RF connectors, it adopts effortless push-on mating structure with three distinct locking types to meet diverse fastening demands. Built-in floating tolerance design enables convenient blind mating, effectively offsetting assembly deviation in multi-direction. With outstanding adaptability for dense module layout, these high-frequency connectors guarantee low-loss microwave signal transmission, widely adopted in vehicle-mounted communication, ship-borne radar and satellite-borne aerospace communication equipment for harsh environment stable connection.
SMP Design Features
- Compact design
- Frequency band operation up to 40GHz
- Rugged construction for reliability
- Available in multiple configurations: straight, right angle, bulkhead, PCB and flange mount options
- Low VSWR & Insertion loss
Interface of SMP RF Coaxial Connectors
50Ω 18GHz SMP Jack 2 Hole Flange Aerospace RF Connectors Mating for CXN3506 Cable, MF108A
Model No.: SMP-KF506-25 ( Cable OD2.3 mm )
50Ω 18GHz SMP Straight Female Aerospace RF Connectors Mating for CXN3506 Cable, MF108A
Model No.: SMP-K506-45 ( Cable OD2.3 mm )
Note: Please check our catalog for more similar models according to your application.
