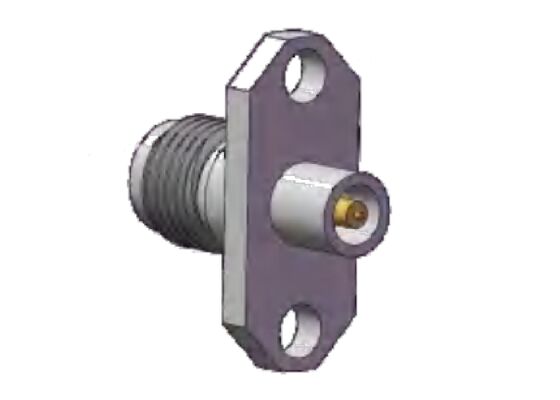

SS Shell 40GHz 2.92mm RF Connector K Socket Flange Mount Hole Spacing .480 inch (12.2mm)
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | 2.92mm RF Connector | Model: | K-KFD136G |
|---|---|---|---|
| Frequency Range: | 0.04Hz-40GHz | Impedance: | 50ohm |
| DWV: | 750V | Center Conductor: | Copper Alloy, Gold Plating |
| Outer Conductor: | Stainless Steel, Passivation | Pin Diameter: | Diameter 0.3mm, 0.4mm, 0.7mm |
| Mount Method: | Two Holes Flange Mount | Insulators: | PEI |
| Highlight: | 2.92mm RF connector flange mount,40GHz RF connector K socket,2.92mm RF connector 12.2mm hole spacing |
||
Product Description:
K-Type (2.92mm) mmWave Connectors
2.92mmWave connectors also known as the K Type connector, the K-type connector is a widely utilized millimeter-wave connector with a maximum operating frequency of up to 40 GHz. 2.92mm connectors we have cable connectors, 2 hole flange mount connectors, 4 hole flange mount connectors, bulkhead connectors, 2.92mm adapters. Featuring an air dielectric interface, it is fully interchangeable and compatible with SMA series and 3.5mm connectors, offering key benefits including compact size, lightweight design, high operating frequency, and stable, reliable connectivity.
2.92mm RF Connectors (K Type) Interface Dimenstion:
| Electrical Characteristics | ||
| Impedance | 50Ω | |
| Frequency Range | 0.04GHz~40GHz | |
| Rated Voltage | 250V | |
| Dielectrics Voltage-resistance | 750V | |
| Insulation Resistance | ≥ 5000 MΩ | |
| Center Resistance | Outer conductor | ≤2.0mΩ |
| Center conductor | ≤3.0mΩ | |
| VSWR | ≤1.3 | |
| Material & Mechanical Characteristics | ||
| Center Conductor | Male | Copper Alloy, gold plated |
| Female | Beryllium bronze, gold plated | |
| Elastic Contact | Beryllium bronze | Gold plated |
| Shell and other Metal Parts | Brass, stainless steel | Gold plated or Passivation |
| Insulators | Glass sintering / PTFE / PEI | |
| Temperature | -55℃ ~ +125℃ | |
Outline Dimension of 2 Holes Flange Mount 2.92mmWave Connectors Female : Model K-KFD136G
| Flange Hole Spacing | 12.2mm |
| Flange Width | 6.7mm |
| Pin Diameter | 0.3mm |
Outline Dimension of 2 Holes Flange Mount 2.92mm Wave Connectors female : K-KFD144G (Unit: mm)
| Flange Hole Spacing | 12.2mm |
| Flange Width | 6.6mm |
| Pin Diameter | 0.6mm |
Outline Dimension of 2 Holes Flange Mount 2.92mmWave Connectors female : K-KFD164G (Unit: mm)
| Flange Hole Spacing | 12.2mm |
| Flange Width | 6.6mm |
| Pin Diameter | 0.7mm |
More 2.92mm Connectors, please don't hesitate to contact us for product catalog. | Custom Solutions Available
