K2.92 Female Stainless Steel RF Connector for CXN3506/MF108A Cable
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Material: | Stainless Steel | Gender: | Female |
|---|---|---|---|
| Product Name: | 2.92mm,K Type,SMK | Keywords: | 2-holes Flange Panel Connector |
| Item: | Millimeter Wave Connector | Plating: | Passivated |
| Application: | RF | Insulator: | PTFE |
| Highlight: | MF108A Stainless Steel RF Connector,CXN3506 Cable RF Connector,Female Stainless Steel RF Connector |
||

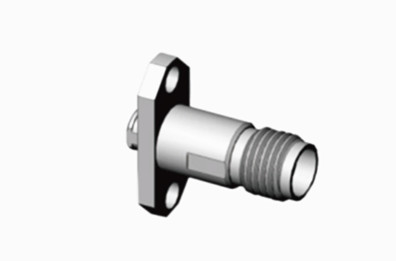

K2.92 Female Stainless Steel RF Connector for CXN3506/MF108A Cable
The K type, also known as the 2.92 type connector, is a commonly used millimeter wave connector with a frequency of up to 40 GHz. It can be used interchangeably with SMA series and 3.5 series products and adopts an air interface. The K type connector features a small size, light weight, high frequency of use, and reliable connection.

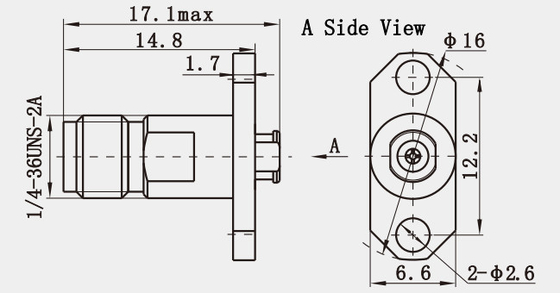

Outline Drawing :(mm)
Specification:
Note:The specific data of the model are based on the data in the product specification sheet.
| Impedance | 50 Ω |
| Frequency Range | DC - 40GHz |
| Voltage Rating | 250 VRMS (Max. Sea Level) |
| Dielectric Withstanding Voltage | 750 VRMS (Max. Sea Level) |
| Voltage Standing Wave Ratio VSWR |
≤ 1.05 + 0.005f |
| Contact Resistance | Center Conductor ≤ 3.0 mΩ |
| Outer Conductor ≤ 2.0 mΩ | |
| Insulation Resistance | ≥ 5000 MΩ |
| Inner Conductor | Male plug: Brass, Gold Plated |
| Female Jack: BeCu, Gold Plated | |
| Resilient Contact | BeCu, Nickel Plated |
| Body / Shell / Housing | Brass, Gold Plated Stainless Steel, Passivated |
| Insulator | PEI |
| Gasket | Silicone Rubber |
| Temperature | -55℃ ~ +125℃ |
| Durability | 500 Cycles |
| Torque | 0.79 ~ 1.13 N.m |
Other 2.92mm Male Female RF Connector:
|
Part Number
|
Description
|
|
K-KFD38
|
2.92mm Type K Female RF Coaxial Connector
|
|
K-KFD76G
|
Stainless steel 2.92mm Type K Female RF Coaxial Connector
|
|
K-KFD8
|
2.92mm Type K Female RF Coaxial Connector
|
|
K-JFD9G |
Stainless steel 2.92mm Type K Male RF Coaxial Connector
|
1.
2.
3.
4.
Features:
1. Structure and Material:
- The main body is of an integrated design, effectively preventing model leakage.
- The outer conductor is made of stainless steel, enhancing durability and corrosion resistance.
- The center conductor is made of beryllium copper with gold plating, ensuring good electrical performance and long-term stability.
2. Electrical Characteristics:
- The characteristic impedance is 50Ω, suitable for a variety of RF applications.
- The frequency range is wide, from DC to 40GHz, meeting the needs of high-frequency applications.
- Low voltage standing wave ratio (VSWR), less than 1.15 at 40GHz, ensures efficient signal transmission.
Application:
1. Radar Engineering: Due to its high frequency range and low insertion loss characteristics, the K2.92 connector is used in radar systems to transmit high-frequency signals, ensuring the accuracy and reliability of radar equipment.
2. Electronic Warfare: In the field of electronic warfare, K2.92 connectors are used to connect various high-frequency devices to achieve effective electronic interference and anti-interference functions.
3. Satellite Communications: Due to its excellent electrical performance and mechanical properties, the K2.92 connector is used in satellite communication systems to connect antennas and receivers, ensuring stable signal transmission.
