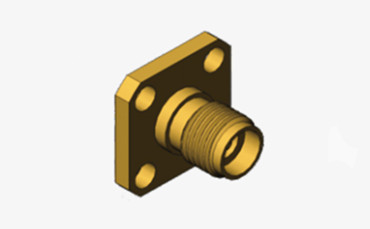

K2.92 Female 4-hole Flange Brass RF Coaxial Connector for 2#Semi-rigid/flexible Cable

Large Image : K2.92 Female 4-hole Flange Brass RF Coaxial Connector for 2#Semi-rigid/flexible Cable Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	ELT
Certification:	ISO-9001-2015
Model Number:	K-KFB2

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	Negotiable
Packaging Details:	Standard Export Carton
Delivery Time:	Within 5-7 workdays(for stocks)
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	35000pcs/year

Contact Now

Detailed Product Description

Material:	Brass	Gender:	Female
Product Name:	K/2.4mm Adaptor	Keywords:	MMW Adaptor Connectors
Item:	Millimeter Wave Connectors	Plating:	Nickel Plated
Application:	RF	Surface Plating:	Passivate
Connector Type:	Straight RF Connectors
Highlight:	Semi-rigid Cable RF Coaxial Connector , Brass RF Coaxial Connector , 4-hole Flange RF Coaxial Connector

K2.92 Female 4-hole Flange Brass RF Coaxial Connector for 2#Semi-rigid/flexible Cable

These K-type (2.92mm) MMW connectors utilize an air interface, characterized by its compact size, lightweight, and reliable connections.
A high-precision 50Ohm coaxial adapter, transitioning from 3.5mm to 2.4mm, serves a wide range of general RF and microwave applications. These high-performance connectors are employed in various test and measurement scenarios, ranging from cellular to satellite communications, ensuring accurate matching of equipment and cable interconnections. Crafted from sturdy stainless steel, the connector is built to endure repeated usage. It features an air dielectric and a central conductor support made of low-loss plastic.

K2.92 Female 4-hole Flange Brass RF Coaxial Connector for 2#Semi-rigid/flexible Cable 0
Specification:

Note:The specific data of the model are based on the data in the product specification sheet.

Impedance	50 Ω
Frequency Range	DC - 40GHz
Voltage Rating	250 VRMS (Max. Sea Level)
Dielectric Withstanding Voltage	750 VRMS (Max. Sea Level)
Voltage Standing Wave Ratio VSWR	≤1.25
Contact Resistance	Center Conductor ≤ 3.0 mΩ
	Outer Conductor ≤ 2.0 mΩ
Insulation Resistance	≥ 5000 MΩ

Inner Conductor	Male plug: Brass, Gold Plated
	Female Jack: BeCu, Gold Plated
Resilient Contact	BeCu, Nickel Plated
Body / Shell / Housing	Brass, Gold Plated Stainless Steel, Passivated
Insulator	PTFE
Gasket	Silicone Rubber
Temperature	-55℃ ~ +125℃
Durability	500 Cycles
Torque	0.79 ~ 1.13 N.m
Insertion loss	<.04 sqrt(f(GHz)) dB
Temperature range	-65 ℃~+165 ℃
Contact pin	Gold Plating

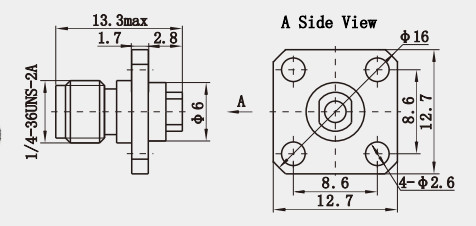

K2.92 Female 4-hole Flange Brass RF Coaxial Connector for 2#Semi-rigid/flexible Cable 1

Features:
1. High-Frequency Performance
Low Insertion Loss and Low VSWR: Leveraging the advantages of air transmission lines, the K2.92mm connector is optimized for Voltage Standing Wave Ratio (VSWR) and insertion loss, ensuring signal transmission stability and efficiency.
2. Structural Design
Compact Size: The small size and light weight of the K2.92mm connector facilitate installation and use in limited spaces, meeting the needs of portable devices and millimeter-wave systems.

Application:
1. Radar Engineering:
The K2.92 connector is extensively used in radar systems where high precision and high-frequency transmission performance are required to detect and locate objects. With a operating frequency range up to 46GHz, it supports the high-frequency signal demands of modern radar technology
2. Electronic Countermeasures:
Electronic countermeasure systems require connectors that can operate stably even in high interference environments. The high performance of the K2.92mm connector ensures signal reliability and integrity in electronic warfare.
The compact design of this connector is ideal for portable electronic countermeasures equipment such as jammers and signal analyzers.
