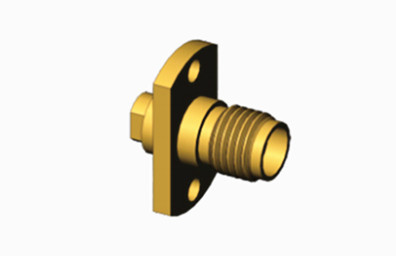

Brass Waterproof Female Flange Mount RF Coaxial Connector For Cable

    Brass Waterproof Female Flange Mount RF Coaxial Connector for Cable

The 2.92 connectors, commonly referred to as the "K type," are essential in millimeter wave technology due to their capability to support frequencies up to 40 GHz. These adapters not only allow for easy interchange with SMA and 3.5 series counterparts but also feature an air dielectric system. They stand out for their streamlined design, lightweight nature, exceptional performance at high frequencies, and ensure reliable connections.

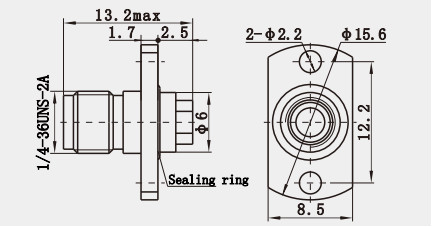

Specification:

Note:The specific data of the model are based on the data in the product specification sheet.


Features:

1. Size and Weight
Compact Size: With an outer conductor diameter of only 2.92mm, the K-type connector’s design ensures high performance in a significantly smaller size compared to many other types of connectors.
Lightweight: The small size results in a lightweight component, particularly useful in applications where reducing equipment burden is essential.
2. Mechanical and Electrical Performance
Excellent Electrical Performance: K-type connectors leverage the advantages of air transmission lines, featuring low VSWR (Voltage Standing Wave Ratio) and insertion loss, ensuring stable and efficient signal transmission.

Other 2.92mm Male Female RF Connector

2.

3.

4.

Application:

1. Electronic Warfare
Signal jamming and anti-jamming: In electronic warfare, K2.92 connectors are used to transmit jamming signals, where their high operating frequency and low insertion loss ensure effective transmission of jamming signals.
Rapid deployment: The lightweight and compact size of the K2.92 connector make it suitable for electronic countermeasure equipment requiring quick movement and deployment, enhancing system mobility and response speed.
2. Satellite Communications
High-performance connectivity: In the field of satellite communications, K2.92 connectors play a key role in transmitting signals from ground equipment to satellites without loss, ensuring high-fidelity signal transmission due to their excellent electrical performance.
Withstanding extreme environments: For satellite equipment operating in extreme extra-atmospheric conditions, the materials and design of K2.92 connectors ensure stable performance under conditions of radiation and extreme temperature variations.
