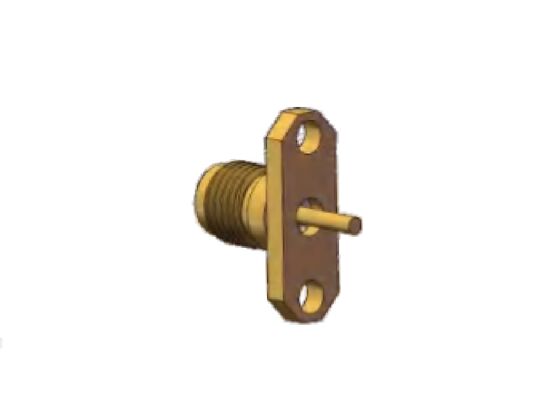

Brass 40 GHz 2.92mm RF Connector K Type Jack Flange Hole Spacing 12.2mm and Pin Diameter 1.3mm

Large Image : Brass 40 GHz 2.92mm RF Connector K Type Jack Flange Hole Spacing 12.2mm and Pin Diameter 1.3mm Get Best Price

Product Details:

Place of Origin:	Xi'an, China
Brand Name:	ELT
Certification:	ISO 9001, ISO14001
Model Number:	K-KFD159

Payment & Shipping Terms:

Minimum Order Quantity:	MOQ 30pcs
Price:	Depending on the quantity
Packaging Details:	1pcs/plastic bag;100pcs/carton
Delivery Time:	8-12weeks after receiving payment
Payment Terms:	T/T or LC
Supply Ability:	As requirements

Contact Now

Detailed Product Description

Product Name:	2.92mm RF Connector	Model:	K-KFD159
Frequency Range:	0.04Hz-40GHz	Impedance:	50ohm
DWV:	750V	Center Conductor:	Copper Alloy, Gold Plating
Outer Conductor:	Brass, Gold Plating	Matched Pin:	Diameter 1.3mm
Mount Method:	Two Holes Flange Mount	Insulators:	PEI
Highlight:	Brass 2.92mm RF connector , 40 GHz K type RF jack , Flange hole RF connector 12.2mm

Product Description:

K-Type (2.92mm) mmWave Connector

2.92mmWave connectors also known as the K Type connector, the K-type connector is a widely utilized millimeter-wave connector with a maximum operating frequency of up to 40 GHz. 2.92mm connectors we have cable connectors, flange mount connectors, bulkhead connectors. Featuring an air dielectric interface, it is fully interchangeable and compatible with SMA series and 3.5mm connectors, offering key benefits including compact size, lightweight design, high operating frequency, and stable, reliable connectivity.

For high-frequency SMA RF connector applications, we provide alternative solutions such as 3.5mm connectors and 2.92mm connectors. Our 3.5mm/2.92mm mmWave connectors/adapters share the same 1/4-36 UNS thread dimensions as SMA connectors/adapters, ensuring full compatibility and interchangeability. The 3.5mm connector supports frequencies up to 35 GHz, while the 2.92mm connector can operate at frequencies up to 40 GHz.

2.92mm RF Connectors (K Type) Interface Dimenstion:

Brass 40 GHz 2.92mm RF Connector K Type Jack Flange Hole Spacing 12.2mm and Pin Diameter 1.3mm 0

Electrical Characteristics
Impedance	50Ω
Frequency Range	0.04GHz~40GHz
Rated Voltage	250V
Dielectrics Voltage-resistance	750V
Insulation Resistance	≥ 5000 MΩ
Center Resistance	Outer conductor	≤2.0mΩ
	Center conductor	≤3.0mΩ
VSWR	≤1.3
Material & Mechanical Characteristics
Center Conductor	Male	Copper Alloy, gold plated
	Female	Beryllium bronze, gold plated
Elastic Contact	Beryllium bronze	Gold plated
Shell and other Metal Parts	Brass, stainless steel	Gold plated or Passivation
Insulators	Glass sintering / PTFE / PEI
Temperature	-55℃ ~ +125℃

Outline Dimension of 2 Holes Flange Mount Copper Alloy 2.92mmWave Connectors Female :

Brass 40 GHz 2.92mm RF Connector K Type Jack Flange Hole Spacing 12.2mm and Pin Diameter 1.3mm 1

Flange Hole Spacing	12.2mm
Flange Width	5.7mm
Pin Diameter	1.3mm

Outline Dimension of 2 Holes Flange Mount Copper Alloy 2.92mm Wave Connectors female : K-KFD146 (Unit: mm)

Brass 40 GHz 2.92mm RF Connector K Type Jack Flange Hole Spacing 12.2mm and Pin Diameter 1.3mm 2

Flange Hole Spacing	12.2mm
Flange Width	5.7mm
Pin Diameter	1.3mm

More 2.92mm Connectors, please don't hesitate to contact us for product catalog. | Custom Solutions Available

Applications:

Xi'an Elite Electronics is a Leading manufacturer of Systematic Interconnection Solution mainly serving the aerospace, aviation, navigation, radar, communications, measurement, electronics fields. Our high quality proudcts use the finest materials and strict processes to ensure the durability and reliability in harsh environment.

Brass 40 GHz 2.92mm RF Connector K Type Jack Flange Hole Spacing 12.2mm and Pin Diameter 1.3mm 3

Packing & Shipping

Packaging:

The Copper Alloy 2 Holes Flange Mount 2.92mm RF Connector is carefully packaged in carton to ensure its protection during transit.

Brass 40 GHz 2.92mm RF Connector K Type Jack Flange Hole Spacing 12.2mm and Pin Diameter 1.3mm 4

Shipping:

We ship the Copper Alloy 2 Hole Flange Mount 2.92mm RF Connector using a reliable courier service to ensure safe and prompt delivery to our customers. Customers will get a tracking NO. after the shipment.
