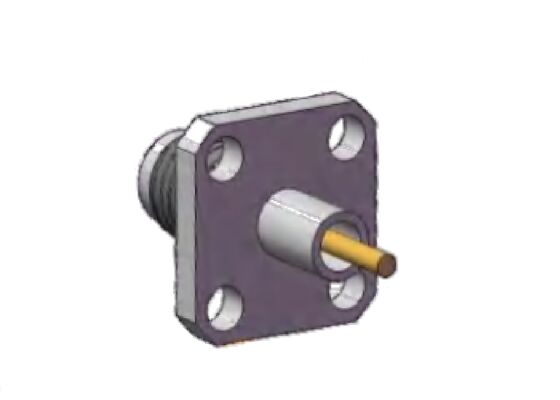

40GHz 2.92mm RF Connector Male Four Holes Flange Panel Mount Matched Pin Diameter 0.051 inch（1.3mm) Flange Hole Spacing 0.339 inch (8.6mm)
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | 2.92mm RF Connector | Model: | K-KFD138G |
|---|---|---|---|
| Frequency Range: | 0.04Hz-40GHz | Impedance: | 50ohm |
| DWV: | 750V | Center Conductor: | Copper Alloy, Gold Plating |
| Outer Conductor: | Stainless Steel, Passivation | Matched Pin: | Diameter 0.3mm |
| Mount Method: | Two Holes Flange Mount | Insulators: | PTFE |
Product Description:
K-Type (2.92mm) mmWave Connector
2.92mmWave connectors also known as the K Type connector, the K-type connector is a widely utilized millimeter-wave connector with a maximum operating frequency of up to 40 GHz. Featuring an air dielectric interface, it is fully interchangeable and compatible with SMA series and 3.5mm connectors, offering key benefits including compact size, lightweight design, high operating frequency, and stable, reliable connectivity.
For high-frequency SMA RF connector applications, we provide alternative solutions such as 3.5mm connectors and 2.92mm connectors. Our 3.5mm/2.92mm mmWave connectors/adapters share the same 1/4-36 UNS thread dimensions as SMA connectors/adapters, ensuring full compatibility and interchangeability. The 3.5mm connector supports frequencies up to 35 GHz, while the 2.92mm connector can operate at frequencies up to 40 GHz.
2.92mm RF Connectors (K Type) Interface Dimenstion:
| Electrical Characteristics | ||
| Impedance | 50Ω | |
| Frequency Range | 0.04GHz~40GHz | |
| Rated Voltage | 250V | |
| Dielectrics Voltage-resistance | 750V | |
| Insulation Resistance | ≥ 5000 MΩ | |
| Center Resistance | Outer conductor | ≤2.0mΩ |
| Center conductor | ≤3.0mΩ | |
| VSWR | ≤1.3 | |
| Material & Mechanical Characteristics | ||
| Center Conductor | Male | Copper Alloy, gold plated |
| Female | Beryllium bronze, gold plated | |
| Elastic Contact | Beryllium bronze | Gold plated |
| Shell and other Metal Parts | Brass, stainless steel | Gold plated or Passivation |
| Insulators | Glass sintering / PTFE / PEI | |
| Temperature | -55℃ ~ +125℃ | |
Outline Dimension of 4 holes Flange Mount Stainless Steel 2.92mmWave Connectors Male Plug : K-KFD138G (Unit: mm)
Outline Dimension of 4 Holes Flange Mount Stainless Steel 2.92mm Wave Connectors Male Plug : K-KFD137G (Unit: mm)
More 2.92mm Connectors, please don't hesitate to tell me. | Custom Solutions Available
Applications:
Xi'an Elite Electronics is a Leading manufacturer of Systematic Interconnection Solution mainly serving the aerospace, aviation, navigation, radar, communications, measurement, electronics fields. Our high quality proudcts use the finest materials and strict processes to ensure the durability and reliability in harsh environment.
Packing & Shipping
Packaging:
The Stainless Steel 4 Holes Flange Mount 2.92mm RF Connector is carefully packaged in carton to ensure its protection during transit.
Shipping:
We ship the Stainless Steel Four Hole Flange Mount 2.92mm RF Connector using a reliable courier service to ensure safe and prompt delivery to our customers. Customers will get a tracking NO. after the shipment.
