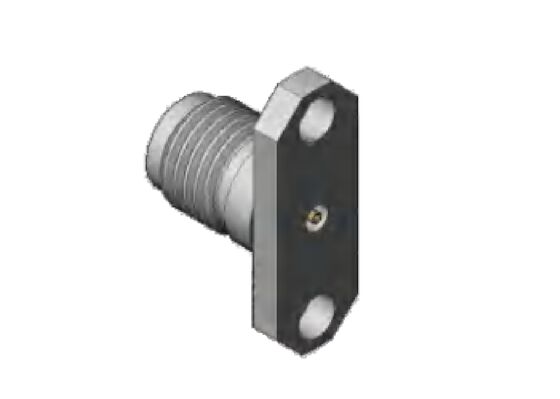

Stainless Steel 2.92mm RF Connector Jack Female 40GHz 2 Holes Flange Mount Accept Pin Diameter 0.3mm

Large Image : Stainless Steel 2.92mm RF Connector Jack Female 40GHz 2 Holes Flange Mount Accept Pin Diameter 0.3mm Get Best Price

Product Details:

Place of Origin:	Xi'an, China
Brand Name:	ELT
Certification:	ISO 9001, ISO14001
Model Number:	K-KFD76G

Payment & Shipping Terms:

Minimum Order Quantity:	MOQ 50pcs
Price:	Depending on the quantity
Packaging Details:	1pcs/plastic bag;100pcs/carton
Delivery Time:	8-12weeks after receiving payment
Payment Terms:	T/T or LC
Supply Ability:	As requirements

Contact Now

Detailed Product Description

Product Name:	2.92mm RF Connector	Model:	K-KFD76G
Frequency Range:	0.04Hz-40GHz	Impedance:	50ohm
DWV:	750V	Center Conductor:	Copper Alloy, Gold Plating
Outer Conductor:	Stainless Steel, Passivation	Mount Method:	2 Holes Flange Mount
Insulators:	PTFE	Pin Diameter:	0.3mm
Highlight:	Stainless Steel 2.92mm RF Connector , 40GHz RF Connector Jack Female , 2.92mm RF Connector Flange Mount

Product Description:

K type, also known as 2.92mm RF connector, is a commonly used millimeter wave connector. The frequency of use can up to 40 GHz. With air interface, it can be interchanged with SMA series and 3.5mm connectors. It has the advantages of small size, light weight, high frequency of use and reliable connection.

Compared to common SMA connectors, the 2.92mm RF connector offers the following advantages:

Wider Bandwidth: SMA connectors typically operate up to 18 GHz, whereas 2.92mm connectors easily support frequencies beyond 40 GHz.

Lower Loss: At 40 GHz, the insertion loss of a 2.92mm rf connector is only about one-third that of an SMA connector.
Higher Reliability: The outer conductor wall is generally thicker than that of an SMA RF connector, and it features a unique resilient contact design for improved durability.

2.92mm RF Connectors (K Type) Interface Dimenstion:

Stainless Steel 2.92mm RF Connector Jack Female 40GHz 2 Holes Flange Mount Accept Pin Diameter 0.3mm 0

Outline Dimension of 2 Hole Flange Mount Stainless Steel 2.92mm RF Connectors Female : K-KFD76G (Unit: mm)

Stainless Steel 2.92mm RF Connector Jack Female 40GHz 2 Holes Flange Mount Accept Pin Diameter 0.3mm 1

Outline Dimension of 2 Hole Flange Mount Stainless Steel 2.92mm RF Connectors Female : K-KFD86G (Unit: mm)

Stainless Steel 2.92mm RF Connector Jack Female 40GHz 2 Holes Flange Mount Accept Pin Diameter 0.3mm 2

Outline Dimension of 2 Hole Flange Mount Stainless Steel 2.92mm RF Connectors Female : K-KFD162G (Unit: mm)

Stainless Steel 2.92mm RF Connector Jack Female 40GHz 2 Holes Flange Mount Accept Pin Diameter 0.3mm 3

Outline Dimension of 2 Hole Flange Mount Stainless Steel 2.92mm RF Connectors Female : K-KFD149G (Unit: mm)

Stainless Steel 2.92mm RF Connector Jack Female 40GHz 2 Holes Flange Mount Accept Pin Diameter 0.3mm 4

Applications:

Xi'an Elite Electronic is a Leading manufacturer of Systematic Interconnection Solution mainly serving the aerospace, aviation, navigation, radar, communications, measurement, electronics fields.

Our high quality proudcts use the finest materials and strict processes to ensure the durability and reliability in harsh environment.

Stainless Steel 2.92mm RF Connector Jack Female 40GHz 2 Holes Flange Mount Accept Pin Diameter 0.3mm 5

Packing and Shipping:

Packaging:

The Stainless Steel 2 Hole Flange Mount 2.92mm Female RF Coaxial Connector is carefully packaged in carton to ensure its protection during transit.

Stainless Steel 2.92mm RF Connector Jack Female 40GHz 2 Holes Flange Mount Accept Pin Diameter 0.3mm 6

Shipping:

We ship the Stainless Steel Flange Mount 2.92mm Connector using a reliable courier service to ensure safe and prompt delivery to our customers. Customers will get a tracking NO. after the shipment.
