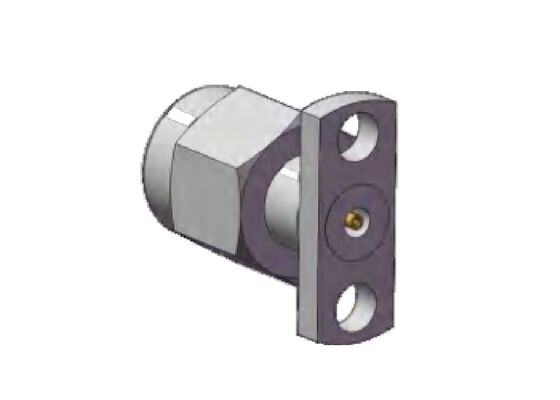

40GHz 2.92mm RF Connector Male Plug mmWave Two Holes Flange Panel Mount Matched Pin Diameter 0.3mm
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | 2.92mm RF Connector | Model: | K-JFD9G |
|---|---|---|---|
| Frequency Range: | 0.04Hz-40GHz | Impedance: | 50ohm |
| DWV: | 750V | Center Conductor: | Copper Alloy, Gold Plating |
| Outer Conductor: | Stainless Steel, Passivation | Matched Pin: | Diameter 0.3mm |
| Mount Method: | Two Holes Flange Mount | Insulators: | PTFE |
Product Description:
K-Type (2.92mm) Millimeter Wave Connector
Also known as the 2.92mm connector, the K-type connector is a widely used millimeter-wave connector with a maximum operating frequency of up to 40 GHz.
Featuring an air dielectric interface design, it is interchangeable and compatible with SMA series and 3.5mm connectors. It boasts significant advantages such as compact size, light weight, high operating frequency, and stable and reliable connection.
For high frequency SMA connectors, our clients use our alternative connectors such as 3.5mm connectors, 2.92mm connectors. Because our 3.5mm/2.92 mmWave adapter and SMA adapters have the same thread dimension of 1/4-36 UNS, so they are fully compatible and interchangeable. The frequency of our 3.5mm can reach up to 35 GHz and the frequency of our 2.92mm connectors can reach up to 40Ghz.
2.92mm RF Connectors (K Type) Interface Dimenstion:
Outline Dimension of Two Holes Flange Mount Stainless Steel 2.92mm Wave Connectors Male Plug : K-JFD9G (Unit: mm)
Outline Dimension of Two Holes Flange Mount Stainless Steel 2.92mm Wave Connectors Male Plug : K-JFD8G (Unit: mm)
Outline Dimension of 2 Hole Flange Mount Stainless Steel 2.92mm Wave Connectors Male Plug : K-JFD7G (Unit: mm)
Outline Dimension of 2-Hole Flange Mount Stainless Steel 2.92mm RF Connectors Male Plug : K-JFDG (Unit: mm)
Outline Dimension of 2-Hole Flange Mount Copper Alloy 2.92mm RF Connectors Male Plug : K-JFD2 (Unit: mm)
Outline Dimension of 2-Hole Flange Mount Stainless Steel 2.92mm RF Connectors Male Plug : K-JFD6G (Unit: mm)
Applications:
Xi'an Elite Electronics is a Leading manufacturer of Systematic Interconnection Solution mainly serving the aerospace, aviation, navigation, radar, communications, measurement, electronics fields.
Our high quality proudcts use the finest materials and strict processes to ensure the durability and reliability in harsh environment.
Packing and Shipping:
Packaging:
The Stainless Steel 2 Holes Flange Mount 2.92mm RF Connector is carefully packaged in carton to ensure its protection during transit.
Shipping:
We ship the Stainless Steel Two Hole Flange Mount 2.92mm RF Connector using a reliable courier service to ensure safe and prompt delivery to our customers. Customers will get a tracking NO. after the shipment.
