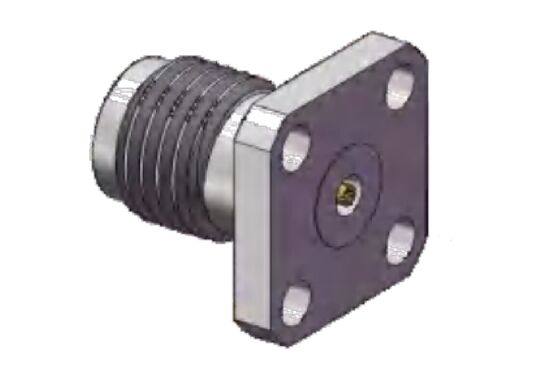

40GHz 2.92mm RF Connector Female Jack 4 Holes Flange Mount Accept Pin Diameter 0.3mm

Large Image : 40GHz 2.92mm RF Connector Female Jack 4 Holes Flange Mount Accept Pin Diameter 0.3mm Get Best Price

Product Details:

Place of Origin:	Xi'an, China
Brand Name:	ELT
Certification:	ISO 9001, ISO14001
Model Number:	K-KFD127G

Payment & Shipping Terms:

Minimum Order Quantity:	MOQ 50pcs
Price:	Depending on the quantity
Packaging Details:	1pcs/plastic bag;100pcs/carton
Delivery Time:	8-12weeks after receiving payment
Payment Terms:	T/T or LC
Supply Ability:	As requirements

Contact Now

Detailed Product Description

Product Name:	2.92mm RF Connector	Model:	K-KFD127G
Frequency Range:	0.04Hz-40GHz	Impedance:	50ohm
DWV:	750V	Center Conductor:	Copper Alloy, Gold Plating
Outer Conductor:	Stainless Steel, Passivation	Pin Diameter:	0.3mm
Mount Method:	4 Holes Flange Mount	Insulators:	PTFE
Highlight:	2.92mm RF connector female jack , 40GHz flange mount RF connector , 0.3mm pin diameter RF connector

Product Description:

The K-type (2.92mm) RF connector is a precision millimeter-wave interface designed for applications up to 40 GHz. Utilizing an air-dielectric design, it ensures mechanical mating compatibility with both SMA and 3.5mm series connectors while offering superior electrical performance.

Key Performance Advantages over SMA:

Extended Frequency Range: While standard SMA connectors are typically limited to 18 GHz, the 2.92mm architecture supports broadband operation up to 40 GHz and beyond.
Superior Signal Integrity: At 40 GHz, the 2.92mm connector exhibits significantly lower insertion loss—approximately one-third that of a standard SMA connector.
Enhanced Mechanical Durability: Featuring a thicker outer conductor wall and a resilient contact design, it offers greater robustness and mating cycle life compared to standard SMA interfaces.

2.92mm RF Connectors (K Type) Interface Dimenstion:

40GHz 2.92mm RF Connector Female Jack 4 Holes Flange Mount Accept Pin Diameter 0.3mm 0

Outline Dimension of 4 Hole Flange Mount Stainless Steel 2.92mm RF Connectors Female : K-KFD127G (Unit: mm)

40GHz 2.92mm RF Connector Female Jack 4 Holes Flange Mount Accept Pin Diameter 0.3mm 1

Outline Dimension of 4 Hole Flange Mount Stainless Steel 2.92mm RF Connectors Female : K-KFD168G (Unit: mm)

40GHz 2.92mm RF Connector Female Jack 4 Holes Flange Mount Accept Pin Diameter 0.3mm 2

Outline Dimension of 4 Hole Flange Mount Stainless Steel 2.92mm RF Connectors Female : K-KFD167 (Unit: mm)

40GHz 2.92mm RF Connector Female Jack 4 Holes Flange Mount Accept Pin Diameter 0.3mm 3

Outline Dimension of 4 Hole Flange Mount Stainless Steel 2.92mm RF Connectors Female : K-KFD152G (Unit: mm)

40GHz 2.92mm RF Connector Female Jack 4 Holes Flange Mount Accept Pin Diameter 0.3mm 4

Applications:

Xi'an Elite Electronic is a Leading manufacturer of Systematic Interconnection Solution mainly serving the aerospace, aviation, navigation, radar, communications, measurement, electronics fields.

Our high quality proudcts use the finest materials and strict processes to ensure the durability and reliability in harsh environment.

40GHz 2.92mm RF Connector Female Jack 4 Holes Flange Mount Accept Pin Diameter 0.3mm 5

Packing and Shipping:

Packaging:

The Stainless Steel 2 Hole Flange Mount 2.92mm Female RF Coaxial Connector is carefully packaged in carton to ensure its protection during transit.

40GHz 2.92mm RF Connector Female Jack 4 Holes Flange Mount Accept Pin Diameter 0.3mm 6

Shipping:

We ship the Stainless Steel Flange Mount 2.92mm Connector using a reliable courier service to ensure safe and prompt delivery to our customers. Customers will get a tracking NO. after the shipment.
