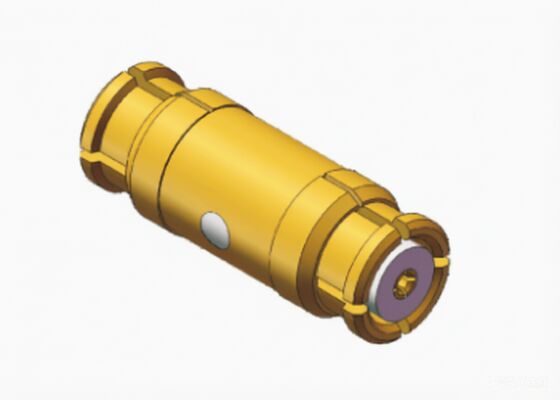

Bullet Adapter SMP Plug to SMP Plug 50 Ohm Straight | Different Length for Board to Board | For Precision Instruments

SMP RF Coaxial Adapter Connectors feature a maximum frequency of up to 40 GHz, ensuring stable and reliable signal integrity in high-frequency test environments and communication systems. With a push-on design, they enable fast, tool-free mating and unmating—no threading or wrench required—significantly reducing installation time and operational complexity. Elite Electronics’ SMP series offers diverse structural options, including straight and right-angle configurations. Whether used in cable assemblies, PCB-mounted applications, flange mounting, or requirements for environmental sealing and waterproofing, there’s a suitable solution for every need.

To ensure reliability across various application scenarios, the male connector is available with three different inner conductor structures based on plug-in cycle requirements:

Full Detent: Ideal for permanent or semi-permanent installations where frequent mating/unmating is not required, offering the highest retention force.

Limited Detent: Suitable for applications requiring regular maintenance, frequent disconnection, and reconfiguration.

Smooth Bore: Engineered for high-density board-to-board assembly, perfect for scenarios with multiple SMP connectors placed closely together.

Insertion and Extraction Force: Full Detent > Limited Detent > Smooth Bore.
