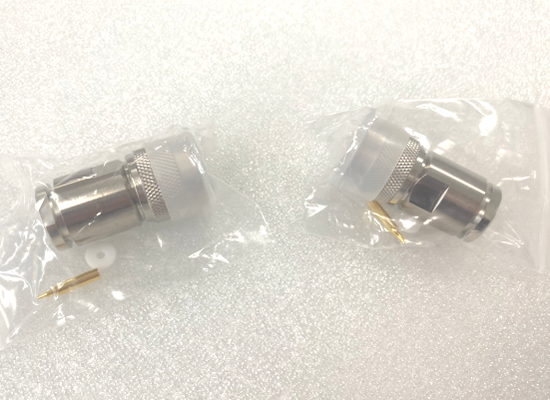

N Type Male Plug RF Coaxial Adapter Connector Suitable for Cable RG213
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | N Type Cable Connector | Model: | N-J7 |
|---|---|---|---|
| Impedance: | 50Ω | Frequency Range: | 0.3MHz-11GHz |
| DWV: | 1000V | Insulation Resistance: | ≥5000MΩ |
| Center Conductor: | Copper Alloy, Gold Plated | Outer Conductor: | Copper Alloy, Nickel Plated |
| Insulators: | PTFE | Cable Type: | RG213, SFF-50-7-2, SFV-50-7-2 |
Product Description:
The N series connector is developed and produced using threaded connections and air as the medium. Superior electrical performance, with a frequency of up to 11GHz. The N-type precision connector produced by Elite Electronic can reach 18GHz and can be matched with various types of RF cables. Due to its good seismic performance, high reliability, and wide frequency band, it is widely used in fields such as aviation, aerospace, radar, microwave communication, digital communication, microwave measurement, etc.
Meanwhile, the N series connector is a type of testing interface connector that is widely used in testing instruments.
Elite Electronics produce the N Type Connectors with the structures with straight connector, right angle, bulkhead mount, 2-hole flange mount, 4-hole flange mount, with metal convex surface and insulation convex surface, Though hole PCB Mount...
Shell Materials: Copper Alloy Gold Plating; Stainless Steel, Passivation
Interface Dimenstion of N Type RF Coaxial Adapter Connectors
Outline Dimension: N Type Suitable for RG213 Cable RF Coaxial Adapter Connector
Applications:
Xi'an Elite Electronics is a Leading manufacturer of Systematic Interconnection Solution mainly serving the aerospace, aviation, navigation, radar, communications, measurement, electronics fields.
Our high quality proudcts use the finest materials and strict processes to ensure the durability and reliability in harsh environment.
Packing and Shipping:
Packaging:
The N type cable RF coaxial adapter connector is carefully packaged in a sturdy cardboard box to ensure its protection during transit. The RF coaxial adapter connector is secured in place with foam padding to prevent any damage from occurring during shipping.
Shipping:
We ship the N-J7 RF coaxial adapter connector using a reliable courier service to ensure safe and prompt delivery to our customers. Customers will get a tracking NO. after the shipment.
