N 4-hole Flange Bulkhead Nickel Plated RF Coaxial Connector with Microstrip
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | N Type RF Coaxial Conector | Plating: | Nickel Plated |
|---|---|---|---|
| Impedance: | 50Ω | Frequency Range: | DC~11GHz |
| Model: | N-KYB2 | Gender: | Female |
| Material: | Brass | Insulator: | PTFE |
| Durability: | 500 Cycles |

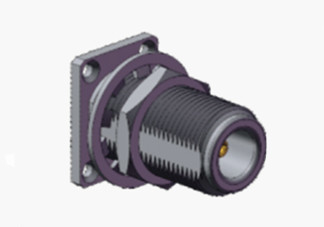

N 4-hole Flange Bulkhead Nickel Plated RF Coaxial Connector with Microstrip
N-type connectors feature screw-thread engagement mechanisms, offering robust vibration resistance and superior electrical performance. With a frequency range extending up to 18 GHz, our models surpass the standard 11 GHz typical rating. These connectors demonstrate broad compatibility with various RF cable types and are widely utilized across industries such as avionics, aerospace engineering, radar systems, microwave technology, digital telecommunications, and high-frequency testing equipment.
We specialize in manufacturing tailored N-type solutions, adapting to specific customer needs whether they require straight or right-angle configurations, panel-mount, chassis-mount, or flange-mount designs.
Specification
Note:The specific data of the model are based on the data in the product specification sheet.
| Electrical Characteristics | ||
| Impedance | 50Ω | |
| Frequency Range | DC~11GHz(Max.18GHz) | |
| Rated Voltage | 1000VRMS*(Max.Sea Level) | |
| Dielectrics Voltage-resistance | 1500VRMS*(Max.Sea Level) | |
| Insulation Resistance | ≥5000MΩ | |
| Center Resistance | Outer conductor | ≤0.5mΩ |
| Center conductor | ≤1.5mΩ | |
| VSWR | ≤1.3 | |
| Material & Mechanical Characteristics | ||
| Center Conductor | Male | Brass, Gold plated |
| Female | Phosphor Bronze, Gold plated | |
| Resilient Contact | Phosphor Bronze | Nickel Plated Passivated |
| Shell / Housing | Brass Stainless steel | Gold plated Passivation |
| Cable Clamp | Brass | Nickel Plated |
| Insulator | PTFE | |
| Gasket | Silicone Rubber | |
| Durability | 500 Cycles | |
Detailed Drawing

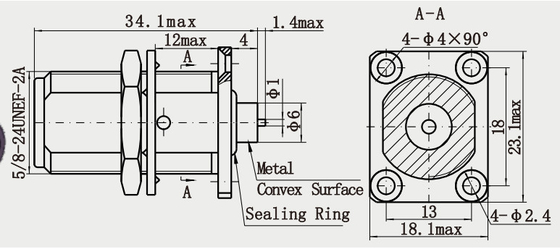

Outline Drawing:
Features:
1. Environmental adaptability
Vibration and shock resistance: The threaded locking structure effectively resists mechanical vibration and shock, suitable for harsh environments (e.g. aerospace, military equipment).
Temperature range: Typically stable in the range of -55°C to +125°C, some military-grade products are resistant to extreme temperatures.
Protection level: Optional waterproof and dustproof design (e.g. IP67/IP68), suitable for outdoor or humid environments.
2. Compatibility and Flexibility
Adaptable to a variety of cables: can match semi-flexible cables, semi-rigid cables, flexible cables, etc., covering different application scenarios (e.g., test instruments, base stations, radar systems).
Customization: Interface type, frequency range, material (e.g. corrosion-resistant stainless steel), surface treatment (e.g. gold-plated, rhodium-plated), etc. can be customized according to requirements.
Applications:
1. Industry and Research
Microwave Experimentation and RF R&D: Supports high-frequency signal testing and equipment integration in laboratory environments, such as antenna design and material analysis14.
High-performance data center: for high-speed RF links between servers and communication devices to ensure signal integrity4.
2. Other special scenarios
Outdoor wireless surveillance: In security systems, N-type connectors are adapted to rain and snow through waterproof design (e.g., flange mount)14.
High power applications: such as microwave ovens, RF heating equipment, N connectors can withstand high power transmission14
Product Cataloge:
| RF Adapter |
| RF Cable Assemblies |
| Glass-to-metal Hermetic Seals |
| J30J Series Connector |
| Microwave Rotary Joints |
| Waveguide to Coaxial Adapter |
| SMA/SSMA RF Connector |
| SMP/SSMP RF Connector |
| MCX/MMCX RF Connector |
| TNC RF Connector |
| N Type RF Connector |
|
Millimeter Wave Connectors(2.4mm, 2.92mm)
|
Packaging & Delivery:
* Standard Export Carton
* According to customers' requirements
NOTE:
We have over 10,000 types of N Type Connector, if the connector you are using is not found, please contact us with your details.
