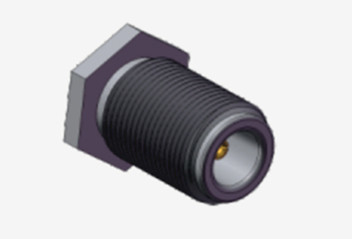

N Female Nickel Plated Bulkhead RF Coaxial Connector with Microstrip
Type-N connectors feature threaded interfaces that ensure secure coupling, combined with exceptional vibration resistance and optimized electrical performance. While their typical frequency range extends up to 11 GHz, our advanced models support operation up to 18 GHz. These connectors demonstrate broad compatibility with various RF cable types and are widely utilized across industries including aerospace engineering, radar systems, microwave technology, digital telecommunications, and high-frequency test equipment.
We offer fully customizable Type-N connectors and adapters tailored to diverse specifications. Whether you require straight or right-angle configurations, panel-mount or chassis-mount designs, our solutions can be precisely engineered to meet your unique application needs.
Specification
Note:The specific data of the model are based on the data in the product specification sheet.
| Electrical Characteristics | ||
| Impedance | 50Ω | |
| Frequency Range | DC~11GHz(Max.18GHz) | |
| Rated Voltage | 1000VRMS*(Max.Sea Level) | |
| Dielectrics Voltage-resistance | 1500VRMS*(Max.Sea Level) | |
| Insulation Resistance | ≥5000MΩ | |
| Center Resistance | Outer conductor | ≤0.5mΩ |
| Center conductor | ≤1.5mΩ | |
| VSWR | ≤1.3 | |
| Material & Mechanical Characteristics | ||
| Center Conductor | Male | Brass,
Nickel Plated |
| Female | Phosphor Bronze,
Nickel Plated |
|
| Resilient Contact | Phosphor Bronze | Nickel Plated |
| Shell / Housing | Brass, Stainless steel |
Nickel Plated |
| Cable Clamp | Brass | Nickel Plated |
| Insulator | PTFE | |
| Gasket | Silicone Rubber | |
| Durability | 500 Cycles | |

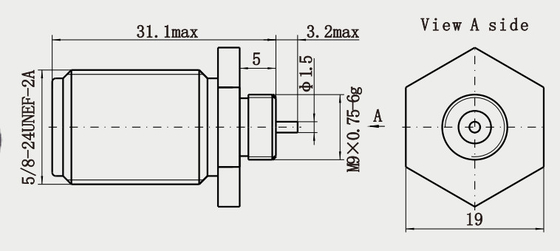

Detailed Drawing
