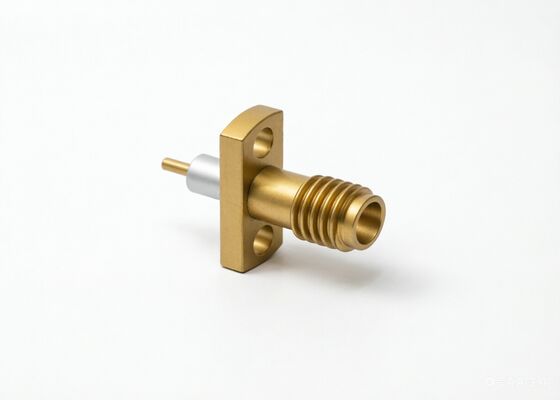

50Ω SSMA RF Connector Female Jack | 18 GHz PTFE Insulating Convex, 2-Hole Flange Mount | for Low-Altitude Detection & Radar Systems

Product Description:

High Reliability & Superior Quality
The SSMA RF connector is engineered for demanding environments, featuring a threaded coupling mechanism (10-36UNF-2) for secure and stable connections. It effectively resists vibration and shock, preventing loosening. Some models utilize specialized glass bead sealing technology, achieving an ultra-low leakage rate (≦1.01325 x 10-3 pa.cm³/s), making them ideal for high-vacuum applications.

Wide Frequency Range & Excellent Electrical Performance
With a standard 50Ω impedance and an operating frequency up to 40GHz, SSMA connectors offer low insertion loss and low VSWR, ensuring clean and efficient transmission of high-frequency signals. Perfect for high-precision microwave applications.

Extensive Model Selection
Elite Electronics provides a comprehensive range of SSMA RF connectors, including standard free-end connectors, panel mount types, and various adapters. Available in solder, crimp, and flange-mount options to meet different equipment and PCB requirements.

Flexible Customization Support
To suit specific application needs, SSMA RF connectors offer light customization services. Flange dimensions, insulation materials, and specialized environmental protection (such as enhanced salt spray resistance) can be tailored to customer specifications.

 Female flange mount SSMA RF connector Model No.: SSMA-KFD13

Features:

• Product Name: SSMA RF Connector
• Screw: 10-36UNS-2
• Center Conductor: Copper Alloy with Gold Plating
• Housting: Copper Alloy with Gold Plating
• Insulation Resistance: ≥5000MΩ
• Impedance: 50ohm
• SSMA flange mount connector with PTFE Insulating convex

Technical Parameters:

Applications:

• Microwave & Satellite Communication: Microwave relay equipment, satellite communication terminals, and base station antenna modules;
• Test & Measurement: High-frequency test equipment, such as spectrum analyzers and network analyzers;
• Commercial Space: High-density integrated wireless communication modules and satellite payload equipment.
• High Edge Electronics

Customization:

Elite Electronics offers comprehensive product customization services for the SSMA RF Connector series, Our connectors are manufactured in Xi'an City, China, and come with ISO9001 and ISO14001 certifications, ensuring high quality and environmental standards.

We specialize in Mini SMA female through hole connectors as well as Mini SMA right angle connectors, providing versatile options to meet your specific requirements.

Our minimum order quantity is 200 pieces for costomization.

Packing and Shipping:

Packaging & Shipping for SSMA RF Connector

The SSMA RF Connector is carefully packaged to ensure maximum protection during transit. Each connector is individually sealed in anti-static bags to prevent any electrostatic discharge damage. The connectors are then placed in sturdy, cushioned boxes to avoid any physical impact or damage.

FAQ:

Q1: Are you trading company or manufacturer ?
A: We are manufacturer with over 23+ years experience on RF/Microwave Interconnect Components .

Q2: What products can you provide currently?
A: RF connectors, adapters, cable assemblies, wave-guide products, glass-to-metal hermetic connectors, micro d-sub, microwave rotary joints and other microwave components.

Q3: Is free sample available?
A: Yes, if have stock, free sample is available with freight collected.

Q4: Can your company accept customize?
A: ODM is welcomed. With more than 23+ years experience in ODM, Elite Electronics can assist in design, product development, research & development and integration of your interconnect products.

Q5: What are the Payment Terms ?
A: We can accept L/C, T/T, Western Union, Trade Assurance (credit card &T/T), etc.

Q6: What is the lead time of SSMA RF Connectors?
A: 5 days for sample orders, 3-4 weeks for mass production orders (based on different quantities, ODM , etc.)

Q7: How will you deliver goods to me?
A: Generally, we cooperate with international expresses such as DHL, UPS, FedEx, TNT to enable our customers to get their goods rapidly but with the lowest freight. Meanwhile, ship by air and by sea is also available.

Q8: How long do I need to wait before my goods arrive?
A: 5-8 workdays for air transportation, 3-8 workdays for international express.

Q9: How is your product quality?
A: As the high-quality suppliers of many national high-tech projects, providing excellent products is our way of development. We have a strong quality control team and very strict process to guarantee our quality according to different quality grade standard.

Q10: What is your warranty of SSMA RF Connectors?
A: Our warranty is 3 months after delivery, Elite Electronic pays high attention to after-sales service.
