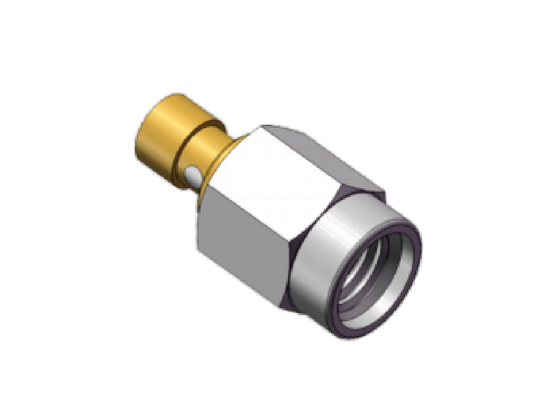

50 Ω 18GHz Mini SMA Male SSMA RF Coaxial Connector Mating Cable CXN3506 MF108A

50 Ω 18GHz Mini SMA Male SSMA RF Coaxial Connector Mating Cable CXN3506 MF108A
50 Ω 18GHz Mini SMA Male SSMA RF Coaxial Connector Mating Cable CXN3506 MF108A

Large Image :  50 Ω 18GHz Mini SMA Male SSMA RF Coaxial Connector Mating Cable CXN3506 MF108A Get Best Price

Product Details:
Place of Origin: Xi'an, China
Brand Name: ELT
Certification: RoHS
Model Number: SSMA-J506G
Payment & Shipping Terms:
Minimum Order Quantity: In stock, MOQ 50pcs for new production
Price: Depending on the quantity
Packaging Details: 1pcs/plastic bag;100pcs/carton
Delivery Time: 5-7 working days for stocked quantity
Payment Terms: T/T or LC
Supply Ability: As requirements
Contact Now
Detailed Product Description
Product Name: SSMA Male Cable Connector Model: SSMA-J506G
Frequency Range: 0.3MHz-18GHz Impedance: 50Ω
DWV: 750V Insulation Resistance: ≥5000MΩ
Center Conductor: Copper Alloy, Gold Plated Outer Conductor: Stainless Steel，Passivation
Mating Cable: CNX3506, MF108A Insulators: PTFE
Samples: In Stock
Highlight:

50 Ω 18GHz SMA male connector

,

SSMA RF coaxial connector MF108A

,

Mini SMA mating cable CXN3506

50Ω 18GHz SSMA Male Mini SMA RF Coaxial Connector Mating for Cable CXN3506,MF108A (Cable OD 2.3mm)
High-Frequency Performance up to 18GHz
The SSMA Series RF coaxial connector is a miniaturized version of the SMA connector, designed to be 30% smaller while maintaining excellent performance characteristics. Featuring a threaded interface (10-36UNF-2) and 50Ω characteristic impedance, these connectors support frequencies up to 30GHz.
Key Feature:
  • Compact design - 30% smaller than standard SMA connectors
  • Wide frequency band operation up to 30GHz
  • High reliability for demanding applications
  • Available in multiple configurations: straight, right angle, bulkhead, and flange mount options
  • Stainless steel screw sleeve/barrel for durability
Interface of SSMA RF Coaxial Connectors
50 Ω 18GHz Mini SMA Male SSMA RF Coaxial Connector Mating Cable CXN3506 MF108A 0
Mini SMA Plug RF Coaxial Cable Connector Dimenstion:
Model No.:  SSMA-J506G  ( mating cable CXN3506, MF108A, Cable OD 2.3mm)
50 Ω 18GHz Mini SMA Male SSMA RF Coaxial Connector Mating Cable CXN3506 MF108A 1
   Model:SSMA-J506G-2  ( mating cable CXN3506, MF108A, Cable OD 2.3mm )
50 Ω 18GHz Mini SMA Male SSMA RF Coaxial Connector Mating Cable CXN3506 MF108A 2
Model:SSMA-J506G-4  ( mating cable CXN3506, MF108A, Cable OD 2.3mm )
50 Ω 18GHz Mini SMA Male SSMA RF Coaxial Connector Mating Cable CXN3506 MF108A 3
Applications
Xi'an Elite Electronics specializes in systematic interconnection solutions for demanding industries including:
  • Aerospace and aviation systems
  • Navigation and radar equipment
  • Communication systems
  • Measurement instruments
  • Electronics applications
50 Ω 18GHz Mini SMA Male SSMA RF Coaxial Connector Mating Cable CXN3506 MF108A 4
Packaging & Shipping
Each SSMA RF Coaxial Connector is carefully packaged to ensure protection during transportation:
50 Ω 18GHz Mini SMA Male SSMA RF Coaxial Connector Mating Cable CXN3506 MF108A 5
We use reliable courier services for prompt delivery, providing customers with tracking information upon shipment.
