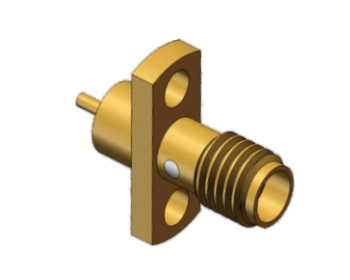

Copper Alloy Gold Plating SSMA RF Connector Flange Mount Frequency Range DC to 18GHz Mini SMA Using Microwave Components

Product Description:

The SSMA RF Connector is a high-performance component designed specifically for reliable and efficient signal transmission in various demanding applications. This connector is available in both male and female gender options, providing versatile compatibility to suit different system requirements. Constructed with a robust copper alloy housing and enhanced with gold plating, the SSMA connector ensures exceptional durability, corrosion resistance, and optimal electrical conductivity, making it an ideal choice for critical environments.

One of the standout features of the SSMA RF Connector is its ability to operate effectively within a wide temperature range of -55℃ to +125℃. This extensive temperature tolerance guarantees stable performance even under extreme environmental conditions, making it suitable for use in aviation, navigation, satellite communications (Satcom), radar systems, general communications, and microwave systems. Whether deployed in high-altitude aircraft or ground-based radar installations, the SSMA connector maintains signal integrity and mechanical reliability.

Whether used in aviation, navigation, Satcom, radar, or general communication systems, the SSMA connector guarantees high reliability, excellent signal integrity, and long-lasting performance.

Technical Parameters:

Outline Drawing:

 Features:

• Product Name: SSMA RF Connector
• Location: Xian, China
• Insulation Resistance: ≥5000MΩ
• Screw: 10-36UNS-2
• Application: Aviation, Navigation, Satcom, Radar, Communications, Microwave Systems
• Insulator Material: PTFE
• Copper alloy gold plating SSMA jack to jack flange mount

Applications:

The SSMA RF Connector is widely used in aviation, navigation, satellite communications (Satcom), radar systems, and microwave communication systems, where signal integrity and reliable connecttion are the most important.

The robust design and precision manufacturing of the Elite Electronics SSMA RF Connector make it ideal for high-frequency and high-reliability environments. Its application in navigation and radar systems ensures accurate signal transmission. In the Satcom and broader communications sectors, these SSMA connectors help maintain signal clarity and system performance, even in harsh conditions.

Customization:

Elite Electronics offers comprehensive product customization services for the SSMA RF Connector, designed and manufactured in Xi'an City, China. Our connectors are certified with ISO9001 and ISO14001, ensuring high-quality standards and environmental management compliance.

We specialize in Mini SMA connectors for cable, and SSMA through hole PCB mount connectors, flange mount connectors. These products are ideal for applications in aviation, navigation, satcom, radar, communications, and microwave systems.

Customization according to drawing,  MOQ: 200pcs

Support & Services:

Our SSMA RF Connectors are designed to provide reliable, high-performance connections in a variety of RF and microwave applications. For technical support, our team of experts is available to assist with product selection, installation guidance, and troubleshooting to ensure optimal performance.

Packing & Shipping:

Our SSMA RF Connector is carefully packaged to ensure maximum protection during transit. The connectors are then placed in custom-designed foam inserts that securely hold the product in place, minimizing movement and potential impact.

If you have any special packaging or shipping requirements, please contact our customer service team, and we will be happy to accommodate your needs.

FAQ:

Q1: Are you trading company or manufacturer ?
A: We are manufacturer with over 23+ years experience on RF/Microwave Interconnect Components .

Q2: What products can you provide currently?
A: RF connectors, adapters, cable assemblies, wave-guide products, glass-to-metal hermetic connectors, micro d-sub, microwave rotary joints and other microwave components.

Q3: Is free sample available?
A: Yes, if have stock, free sample is available with freight collected.

Q4: Can your company accept customize?
A: ODM is welcomed. With more than 23+ years experience in ODM, Elite Electronics can assist in design, product development, research & development and integration of your interconnect products.

Q5: What are the Payment Terms ?
A: We can accept L/C, T/T, Western Union, Trade Assurance (credit card &T/T), etc.

Q6: What is the lead time?
A: 5 days for sample orders, 3-4 weeks for mass production orders (based on different quantities, ODM , etc.)

Q7: How will you deliver goods to me?
A: Generally, we cooperate with international expresses such as DHL, UPS, FedEx, TNT to enable our customers to get their goods rapidly but with the lowest freight. Meanwhile, ship by air and by sea is also available.

Q8: How long do I need to wait before my goods arrive?
A: 5-8 workdays for air transportation, 3-8 workdays for international express.

Q9: How is your product quality?
A: As the high-quality suppliers of many national high-tech projects, providing excellent products is our way of development. We have a strong quality control team and very strict process to guarantee our quality according to different quality grade standard.

Q10: What is your warranty?
A: Our warranty is 3 months after delivery, Elite Electronic pays high attention to after-sales service.
